REAR NO. 1 SUSPENSION ARM (for 4WD): Components

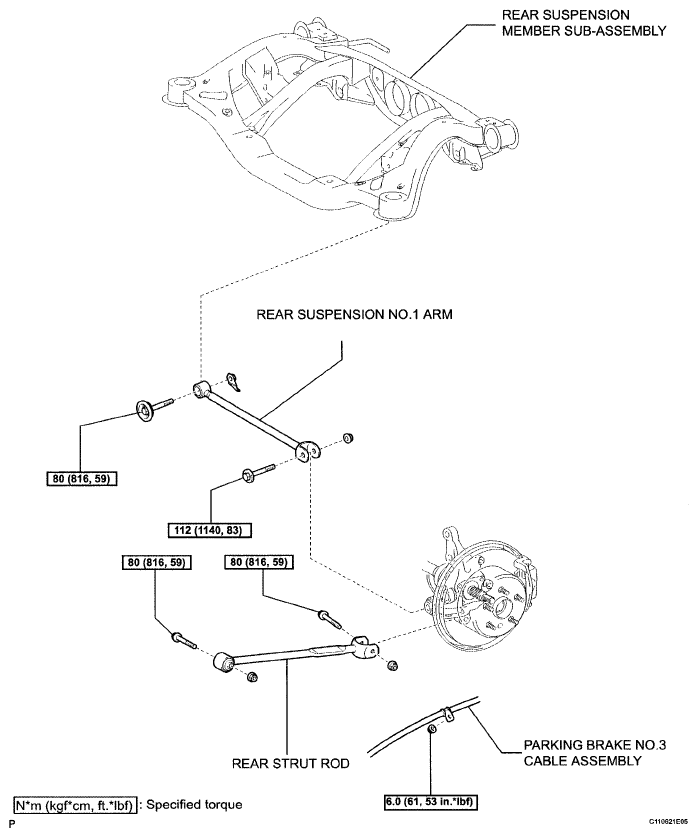

Fig 1: Identifying Rear Suspension No. 1 Arm (For 4WD) Replacement Components With Torque Specifications

G05202582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
