REAR NO. 1 SUSPENSION ARM (for 2WD): Components

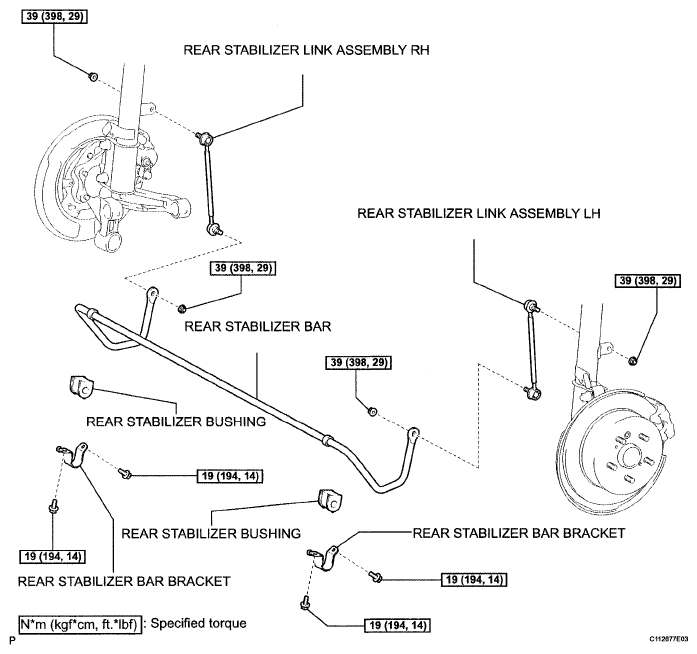

Fig 1: Identifying Rear Stabilizer Bar (For 2WD) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

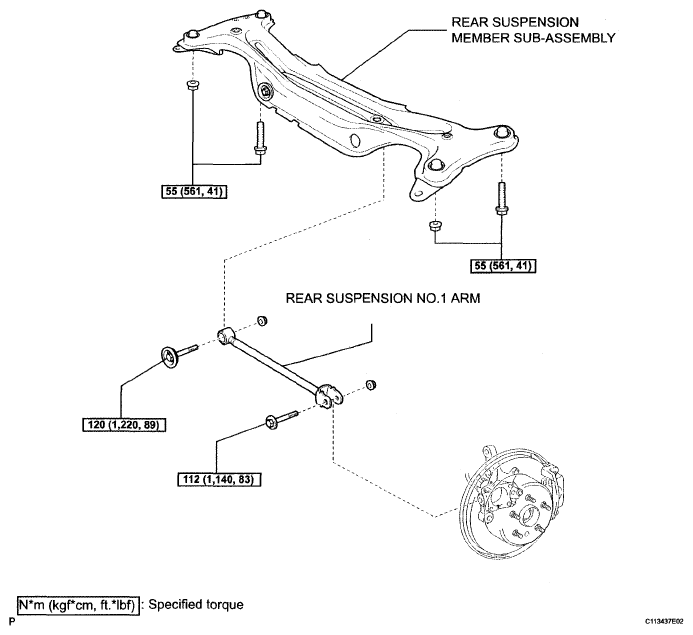

Fig 2: Identifying Rear Suspension No. 1 Arm (For 2WD) Replacement Components With Torque Specifications (2 Of 2)
