Home >> Toyota >> 2007 >> Highlander Hybrid Limited, AWD >> Repair and Diagnosis >> Suspension >> Front Suspension >> Suspension (Hybrid) >> Front Suspension Lower No. 1 Arm >> Components

Front Suspension Lower No. 1 Arm: Components

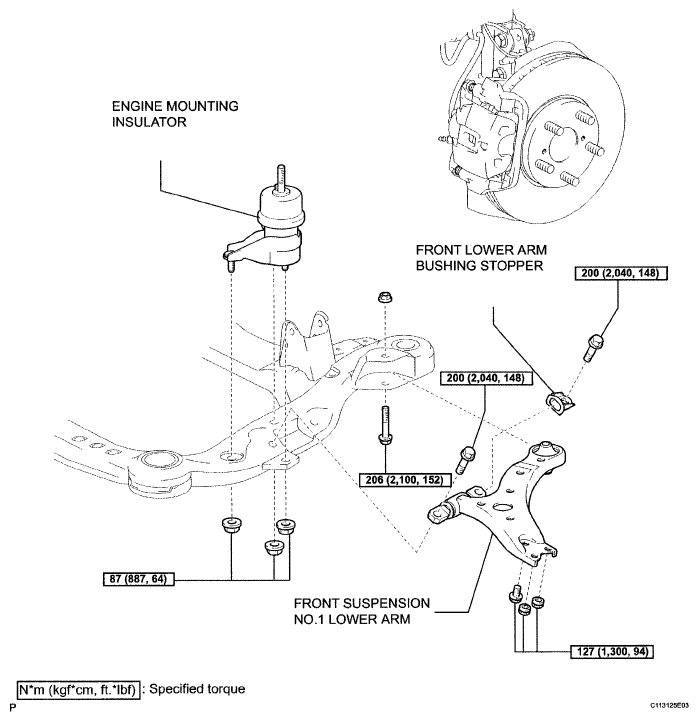

Fig 1: Front Suspension No. 1 Lower Arm Component With Torque Specification

G05202517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
