Front Stabilizer Bar: Components

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications (1 Of 2)
G05202526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

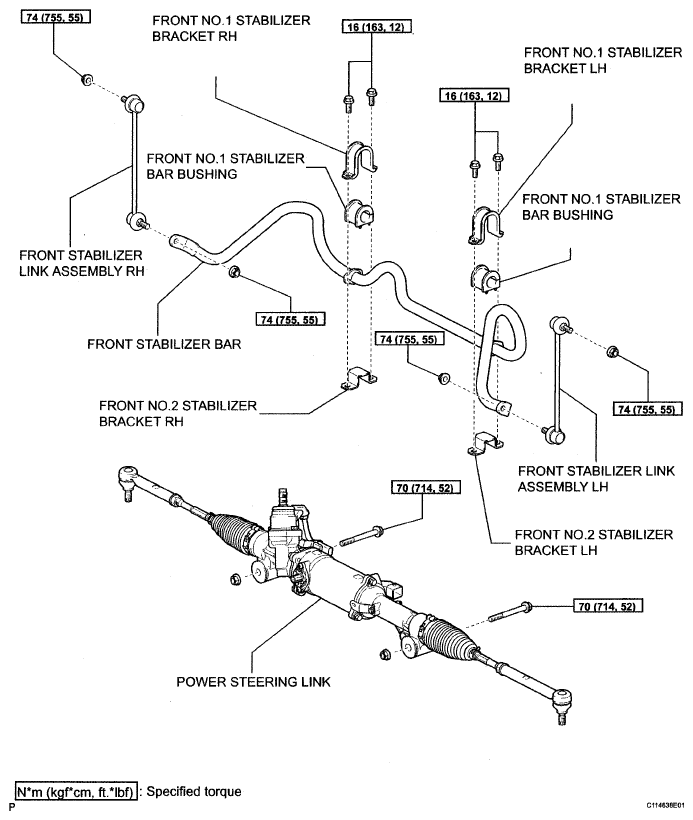

Fig 2: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
G05202527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
