Front Shock Absorber: Components

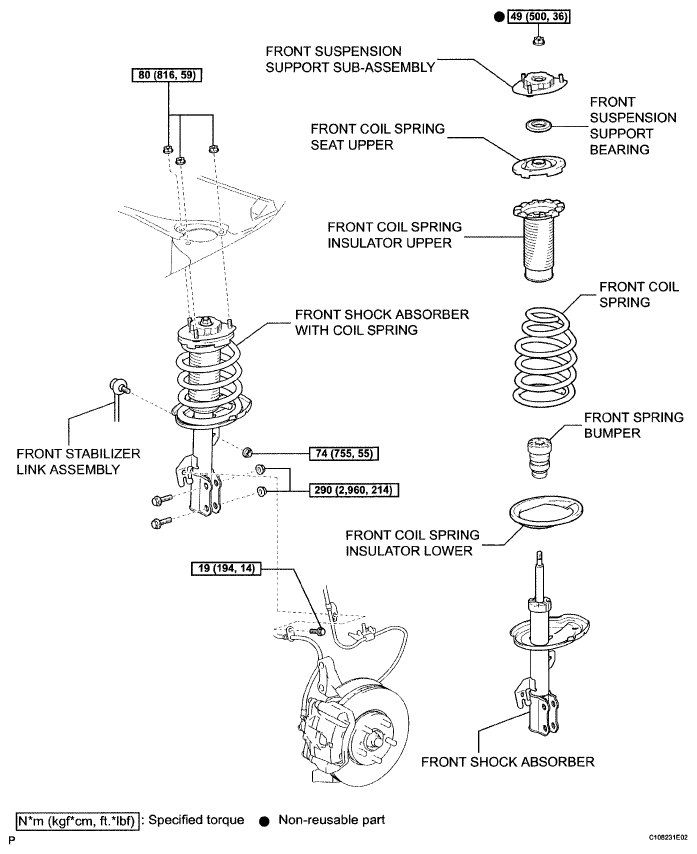

Fig 1: Identifying Fronting Shock Absorber Replacement Components With Torque Specifications

G05202492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
