Front Lower Ball Joint: Components

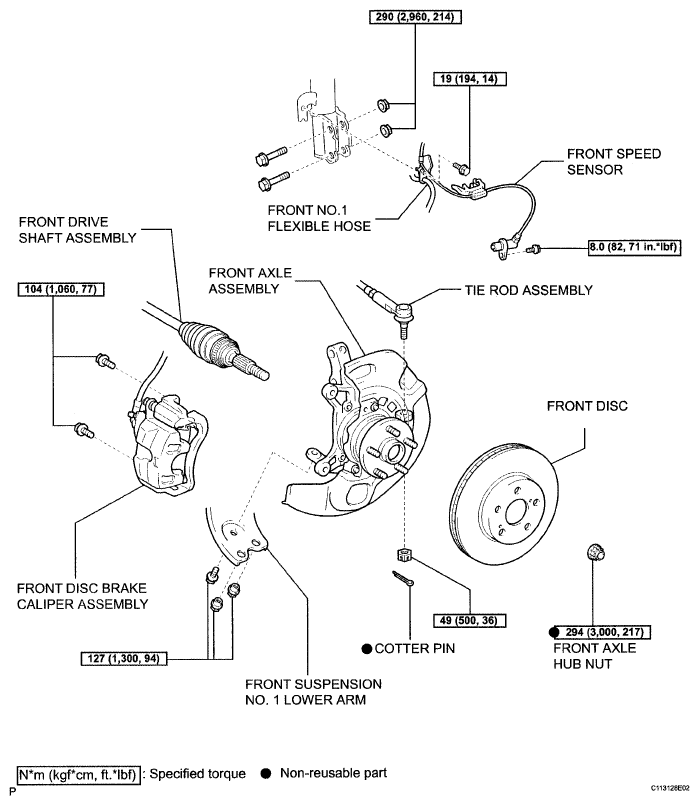

Fig 1: Identifying Front Lower Ball Joint Replacement Components With Torque Specifications (1 Of 2)
G05202522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

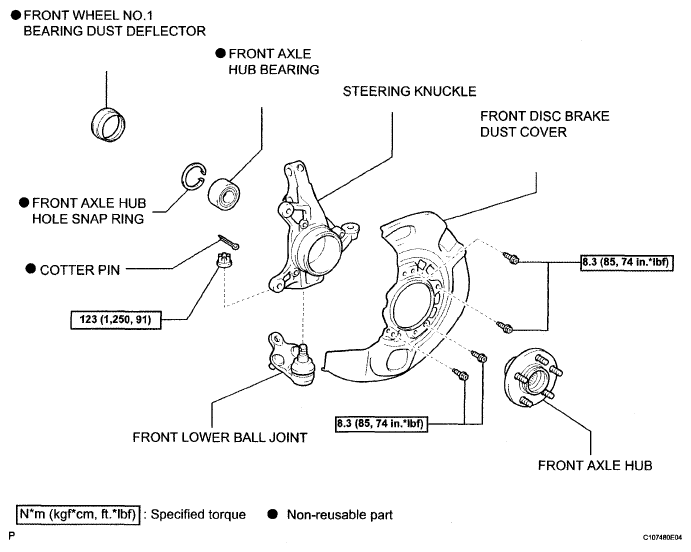

Fig 2: Identifying Front Lower Ball Joint Replacement Components With Torque Specifications (2 Of 2)
G05202523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
