Home >> Toyota >> 2007 >> Highlander Hybrid Limited, AWD >> Repair and Diagnosis >> Restraints >> Seat Belts >> Seat Belt (Hybrid) >> Front Seat Outer Belt Assembly With PRETENSIONER >> Components

Front Seat Outer Belt Assembly With PRETENSIONER: Components

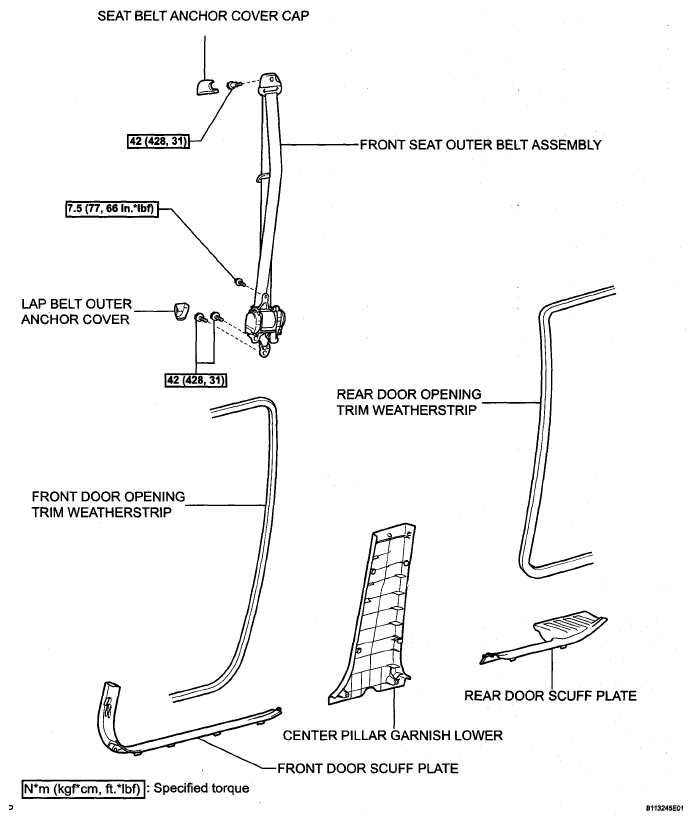

Fig 1: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications

G05242871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
