Front Seat Inner Belt Assembly: Components

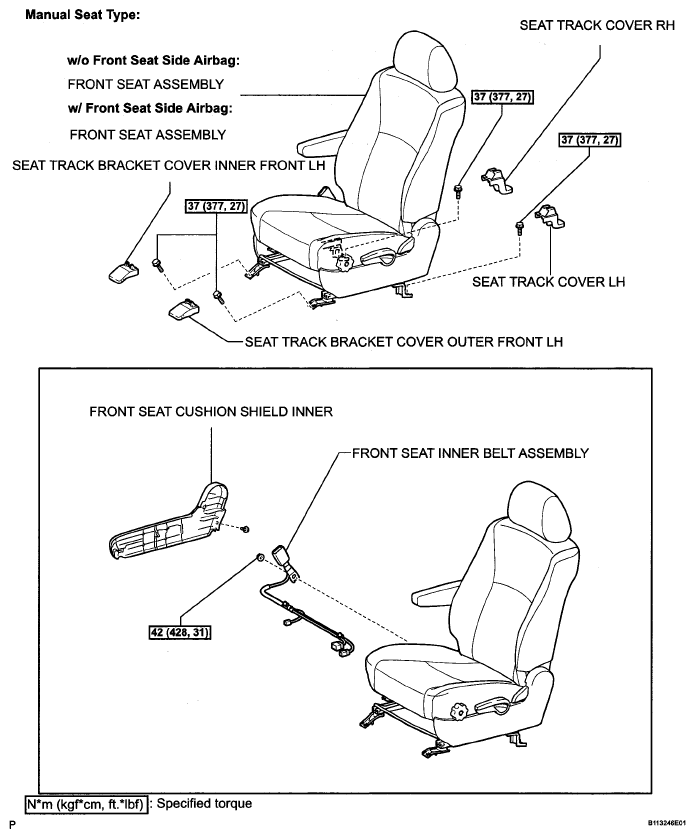

Fig 1: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G05242867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

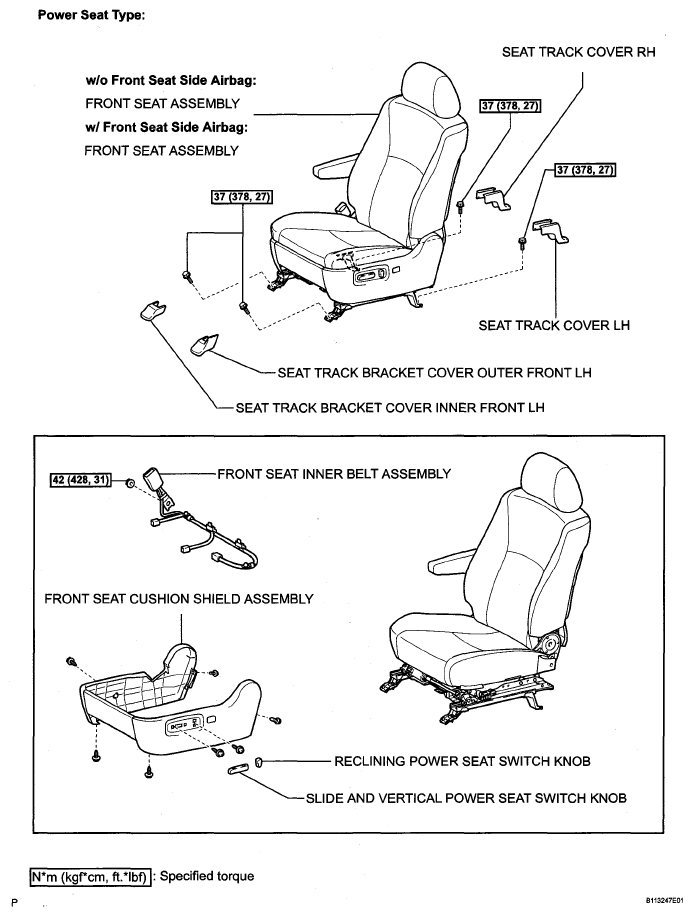

Fig 2: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G05242868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
