Section 58 (OEM Electrical Wiring Routing (Hybrid))
>>
Electrical Wiring Routing
>>
Position of Parts in Seat
>>
Front Seat w/Power Seat
Front Seat w/Power Seat
WARNING:
This page is about a different variant/trim than selected.

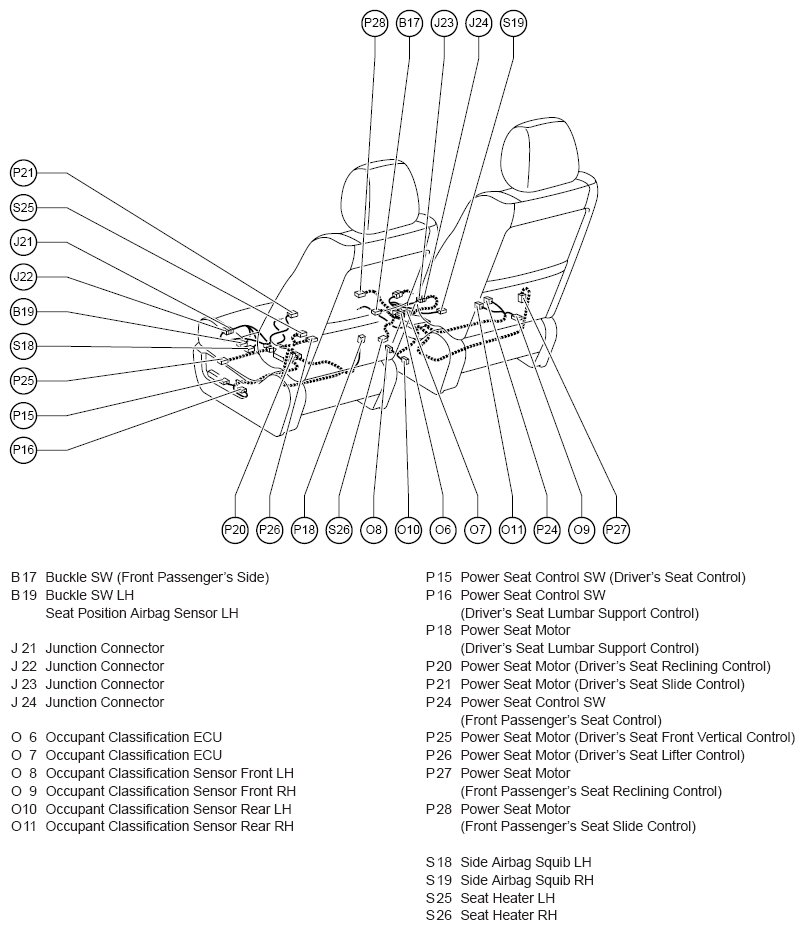

Fig 1: Front Seat W/Power Seat Parts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
