Position of Parts in Engine Compartment

WARNING: This page is about a different variant/trim than selected.

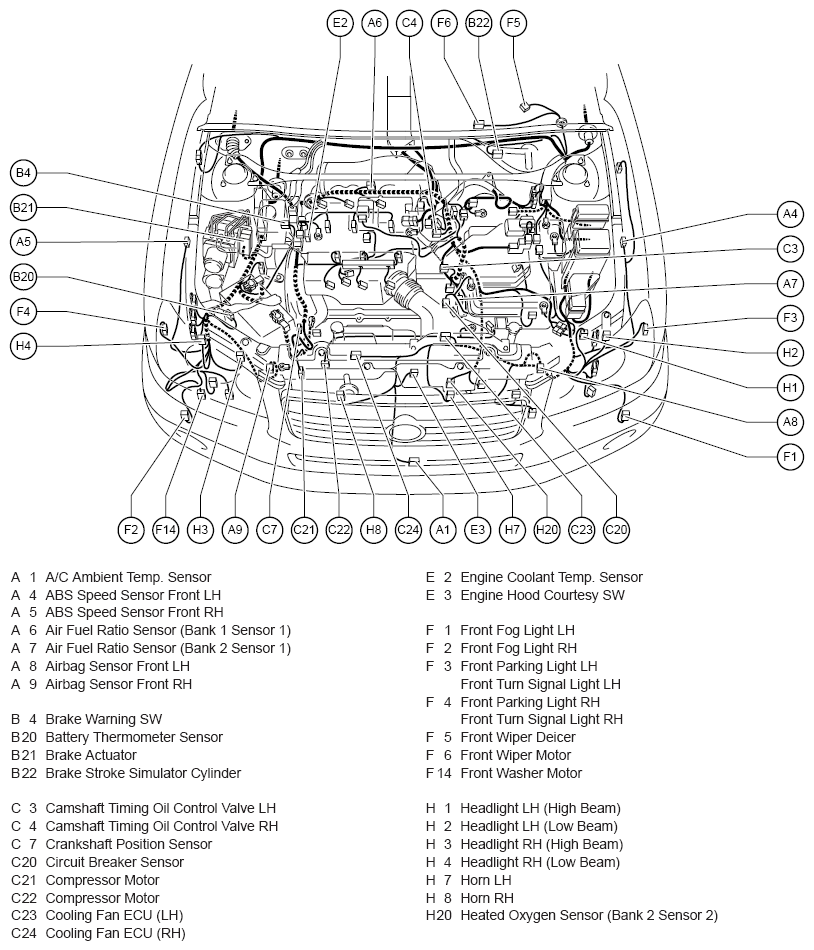

Fig 1: Engine Compartment Parts (1 Of 2)
G08782297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

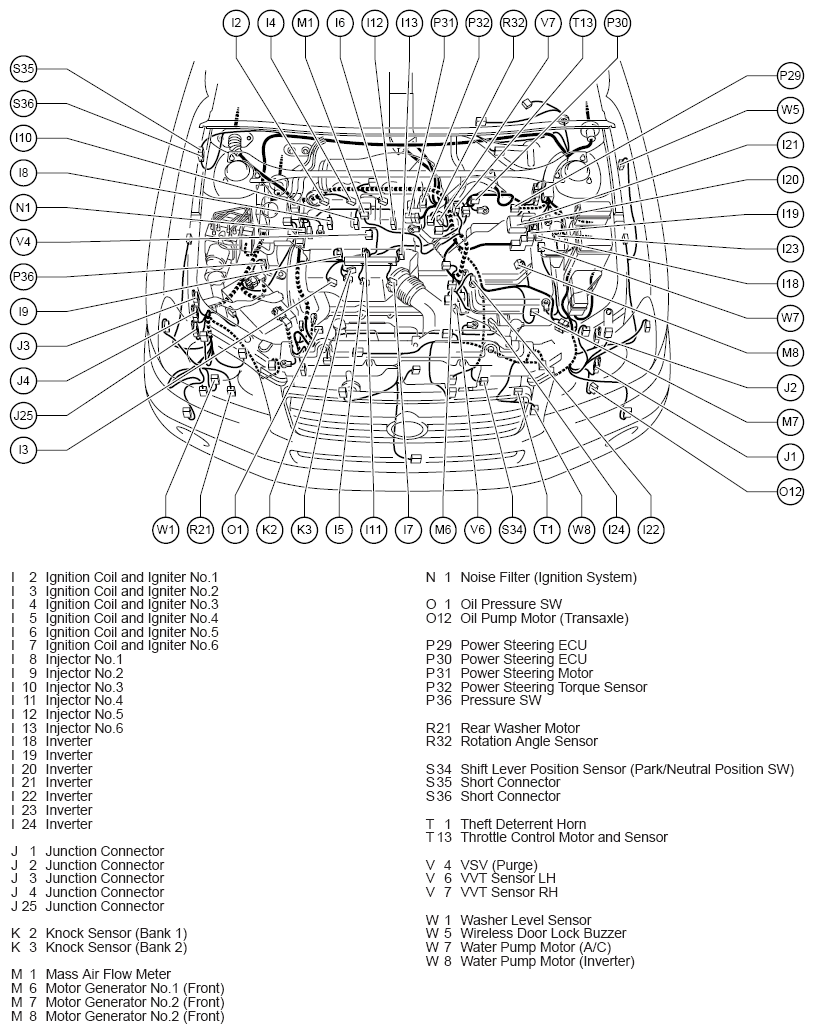

Fig 2: Engine Compartment Parts (2 Of 2)
G08782298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
