: Location of Ground Points

WARNING: This page is about a different variant/trim than selected.

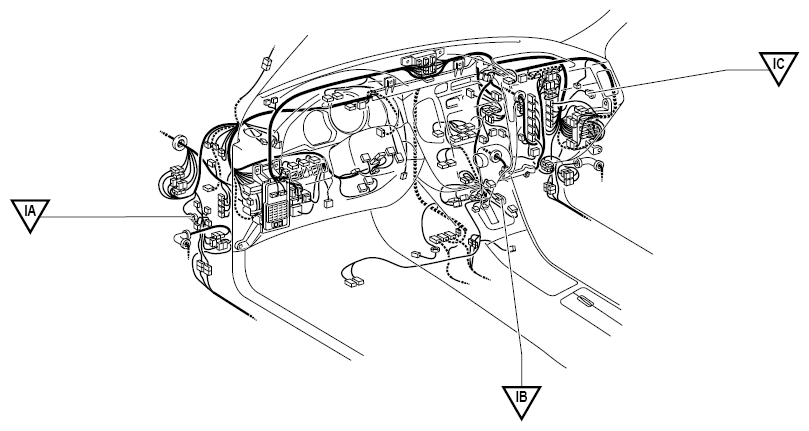

Fig 1: Locating Ground Points
G08782308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

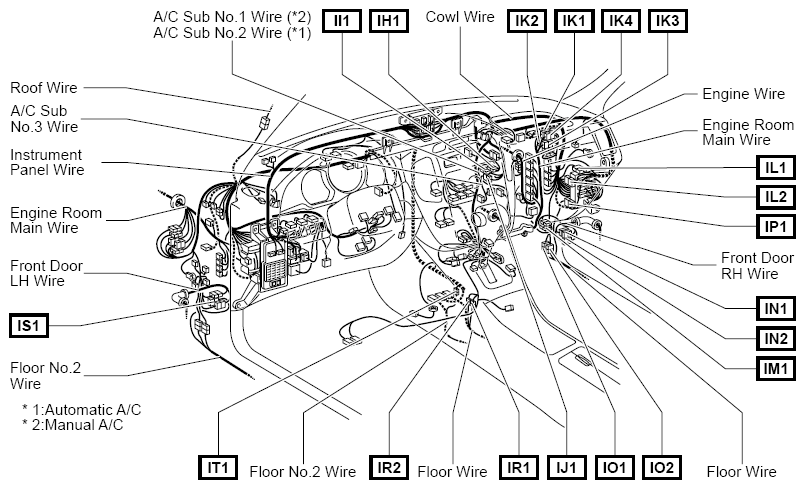

Fig 2: Locating Wiring Harnesses And Ground Points
G08782309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
