: Location of Connector Joining Wire Harness and Wire Harness

WARNING: This page is about a different variant/trim than selected.

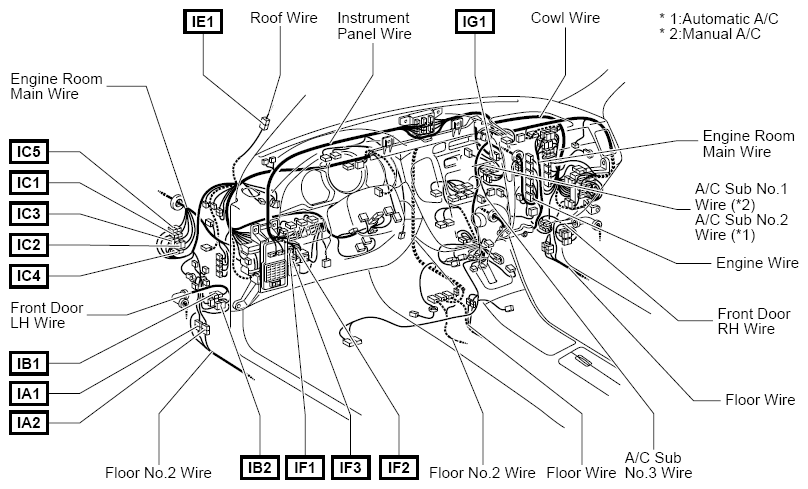

Fig 1: Locating Wiring Harnesses And Ground Points
G08782307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
