Section 58 (OEM Electrical Wiring Routing (Hybrid))
>>
Electrical Wiring Routing
>>
: Location of Connector Joining Wire Harness and Wire Harness; : Location of Ground Points
>>
Rear Seat
Rear Seat
WARNING:
This page is about a different variant/trim than selected.

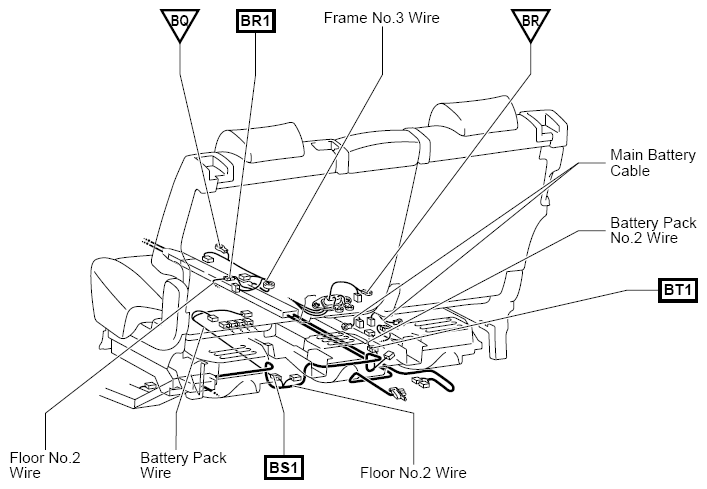

Fig 1: Locating Wiring Harness And Ground Points (Rear Seat)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
