Section 57 (OEM Overall Electrical Wiring Diagram (Hybrid))
>>
Overall Electrical Wiring Diagram
>>
Theft Deterrent System
Theft Deterrent System
WARNING:
This page is about a different variant/trim than selected.

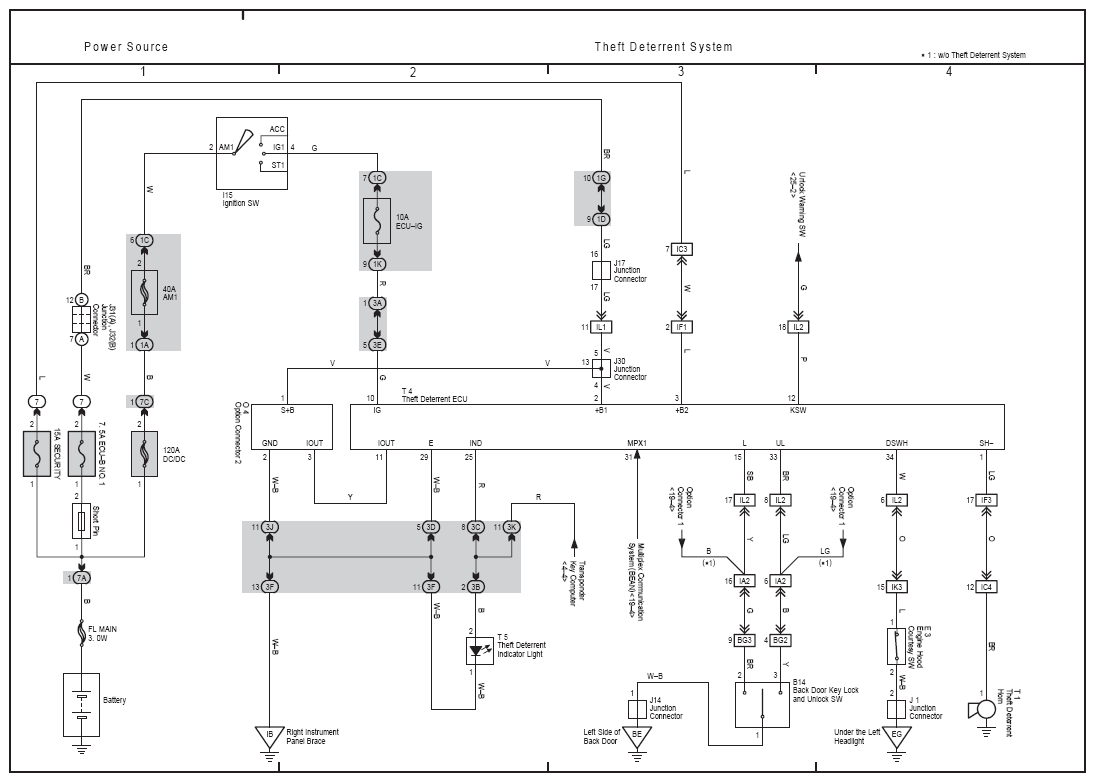

Fig 1: Theft Deterrent System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
