Overall Electrical Wiring Diagram: SRS

WARNING: This page is about a different variant/trim than selected.

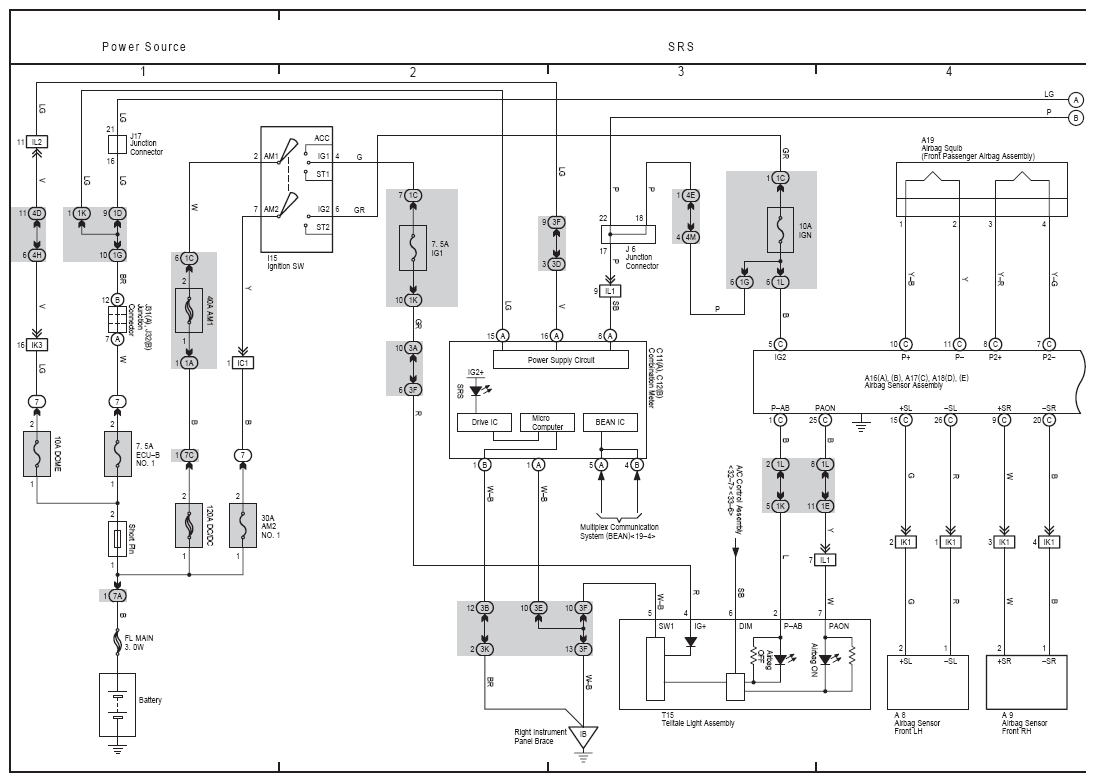

Fig 1: SRS Wiring Diagram (1 Of 3)
G08782914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

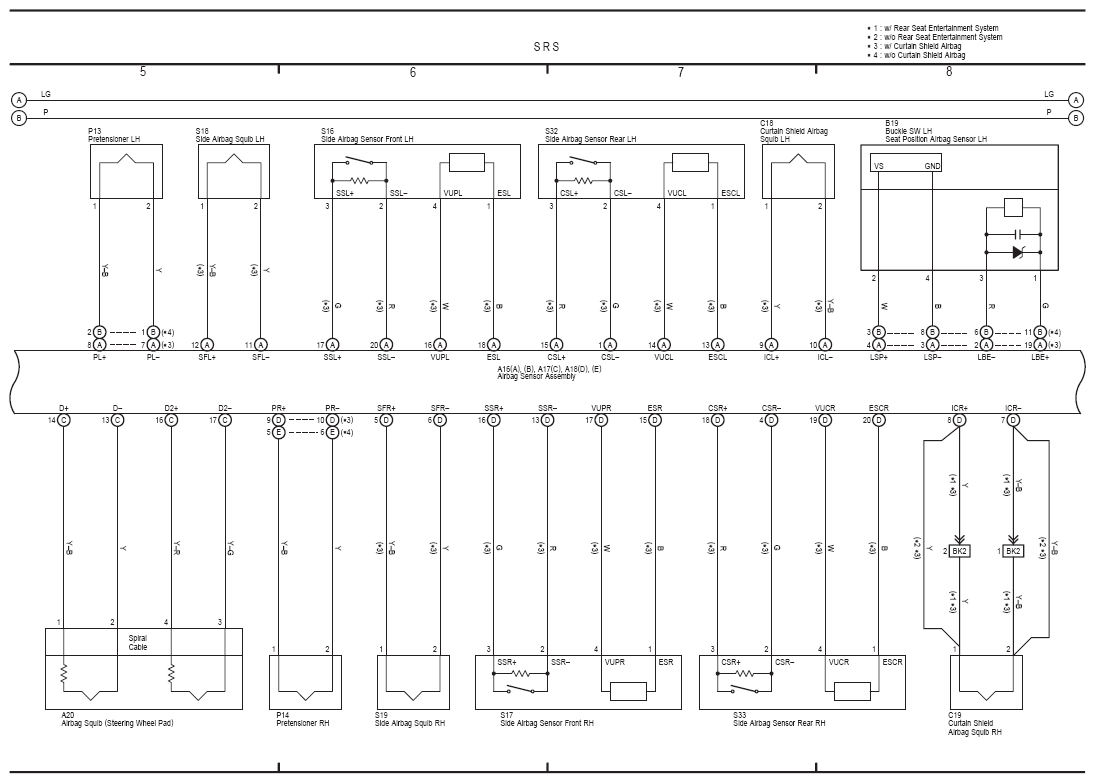

Fig 2: SRS Wiring Diagram (2 Of 3)
G08782915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

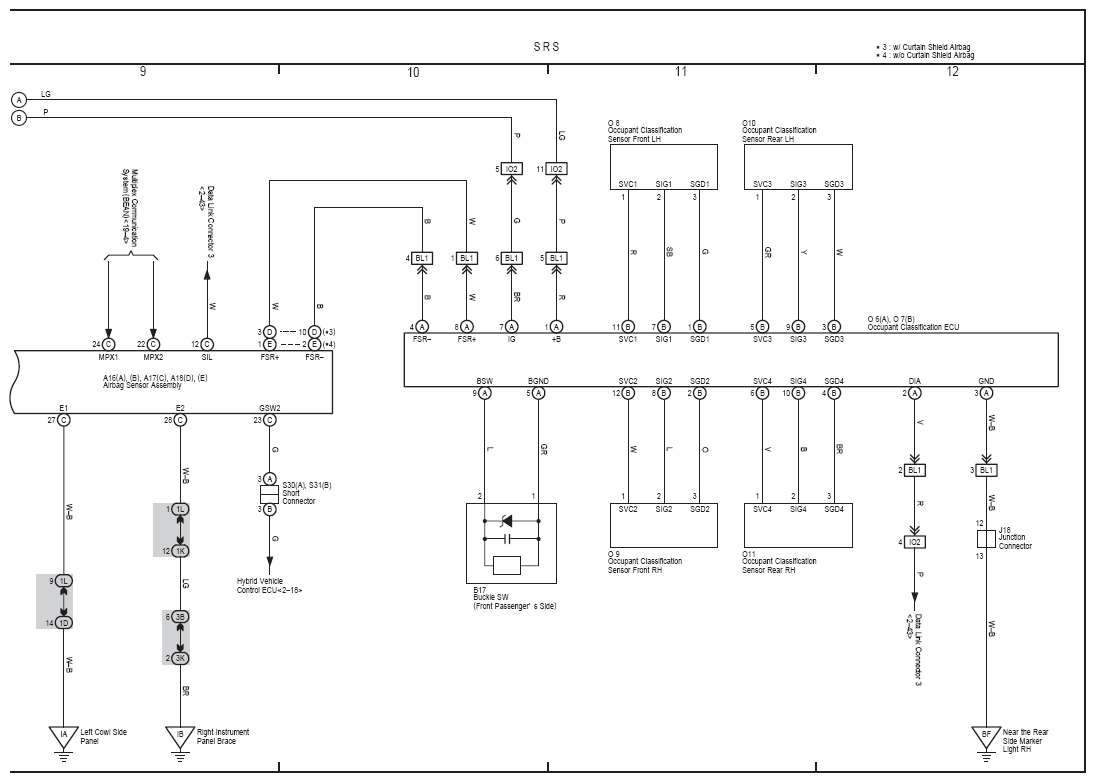

Fig 3: SRS Wiring Diagram (3 Of 3)
G08782916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
