Section 57 (OEM Overall Electrical Wiring Diagram (Hybrid))
>>
Overall Electrical Wiring Diagram
>>
Remote Control Mirror, Shift Lock
Remote Control Mirror, Shift Lock
WARNING:
This page is about a different variant/trim than selected.

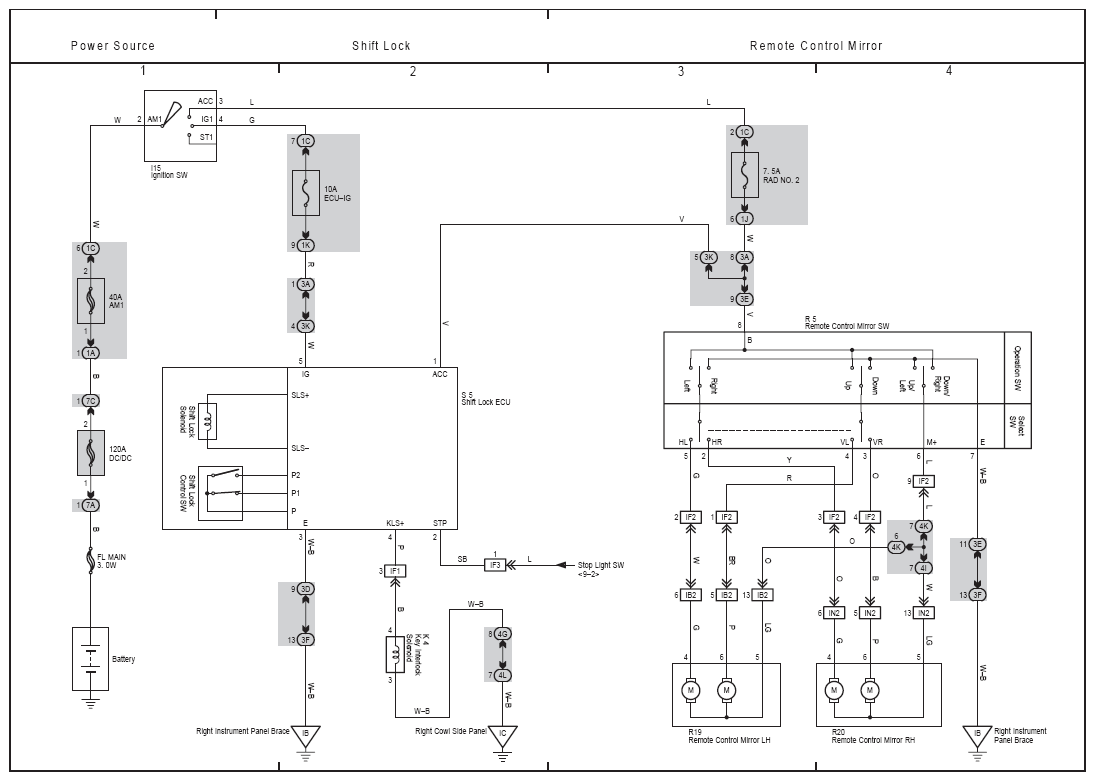

Fig 1: Shift Lock Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
