Power Window

WARNING: This page is about a different variant/trim than selected.

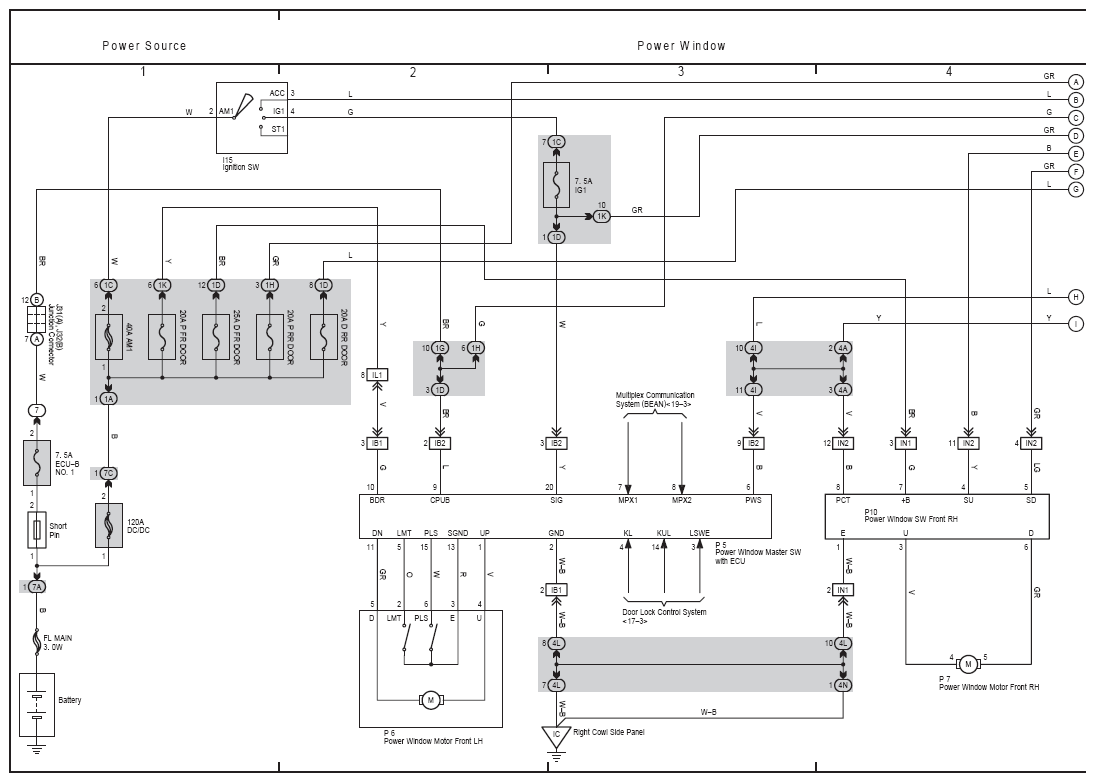

Fig 1: Power Window Wiring Diagram (1 Of 2)
G08782919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

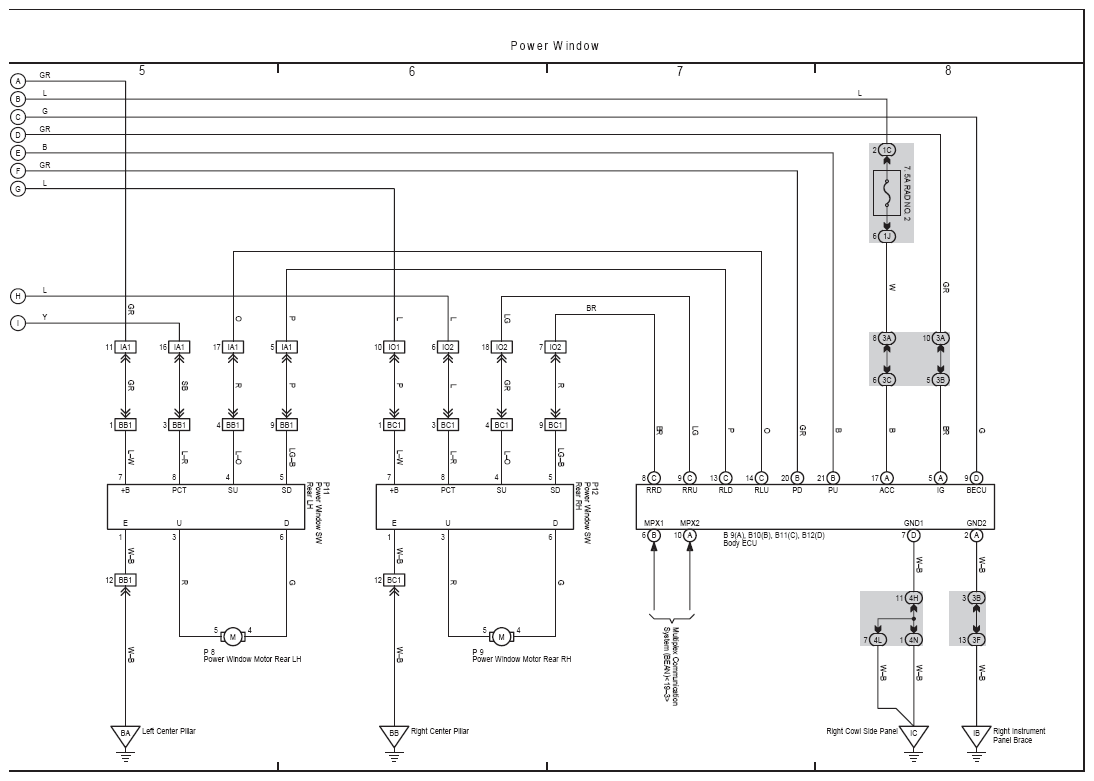

Fig 2: Power Window Wiring Diagram (2 Of 2)
G08782920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
