Hybrid Vehicle Immobilizer System

WARNING: This page is about a different variant/trim than selected.

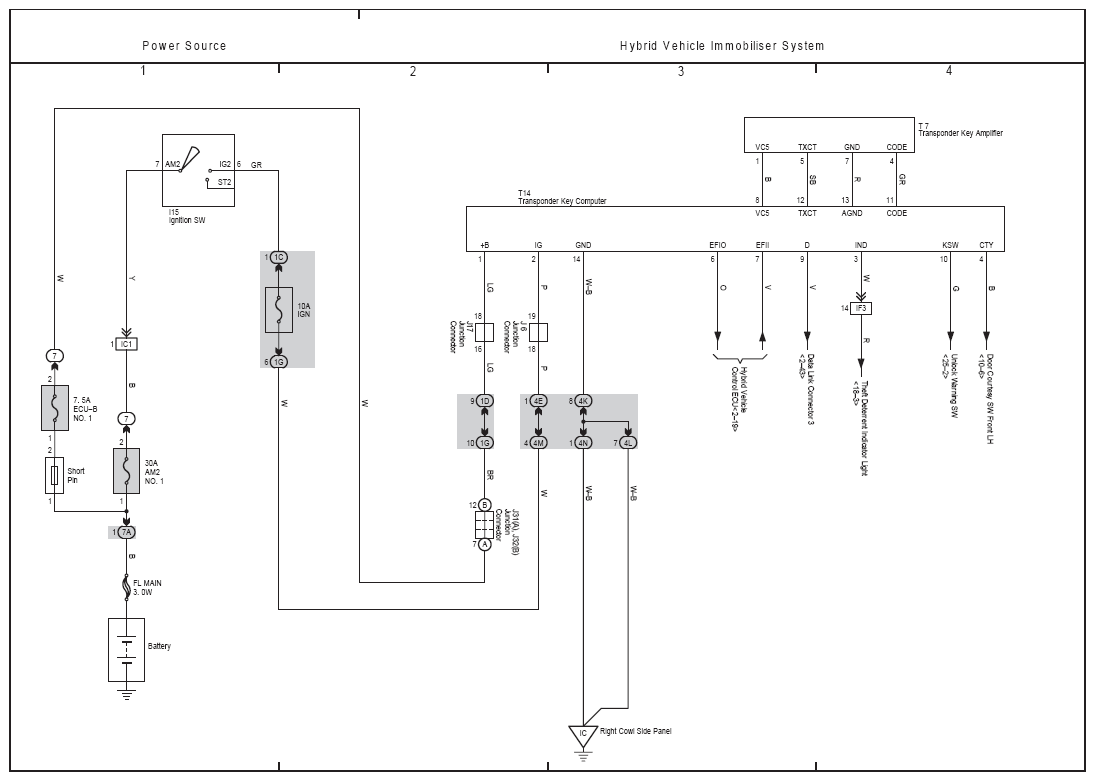

Fig 1: Hybrid Vehicle Immobilizer System Wiring Diagram
G08782900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
