Front Window Deicer, Mirror Heater, Rear Window Defogger

WARNING: This page is about a different variant/trim than selected.

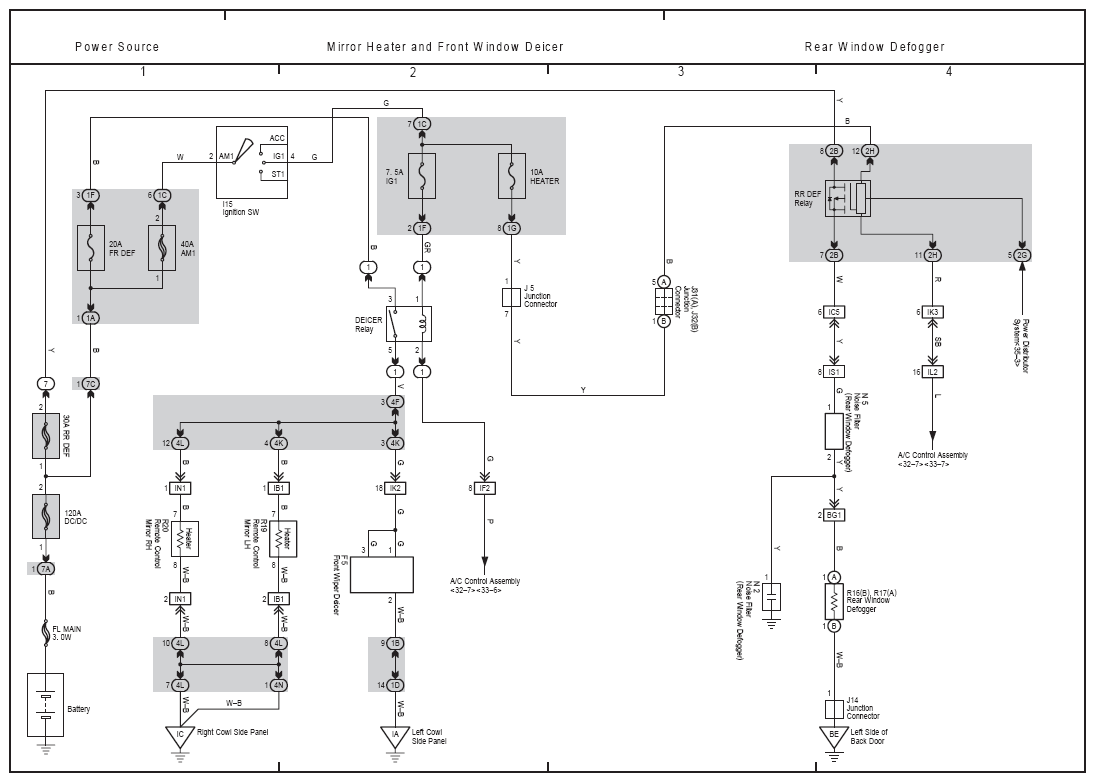

Fig 1: Mirror Heater And Front Window Deicer Wiring Diagram
G08782929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
