Section 57 (OEM Overall Electrical Wiring Diagram (Hybrid))
>>
Overall Electrical Wiring Diagram
>>
Cooling Fan, Fuel Lid Opener
Cooling Fan, Fuel Lid Opener
WARNING:
This page is about a different variant/trim than selected.

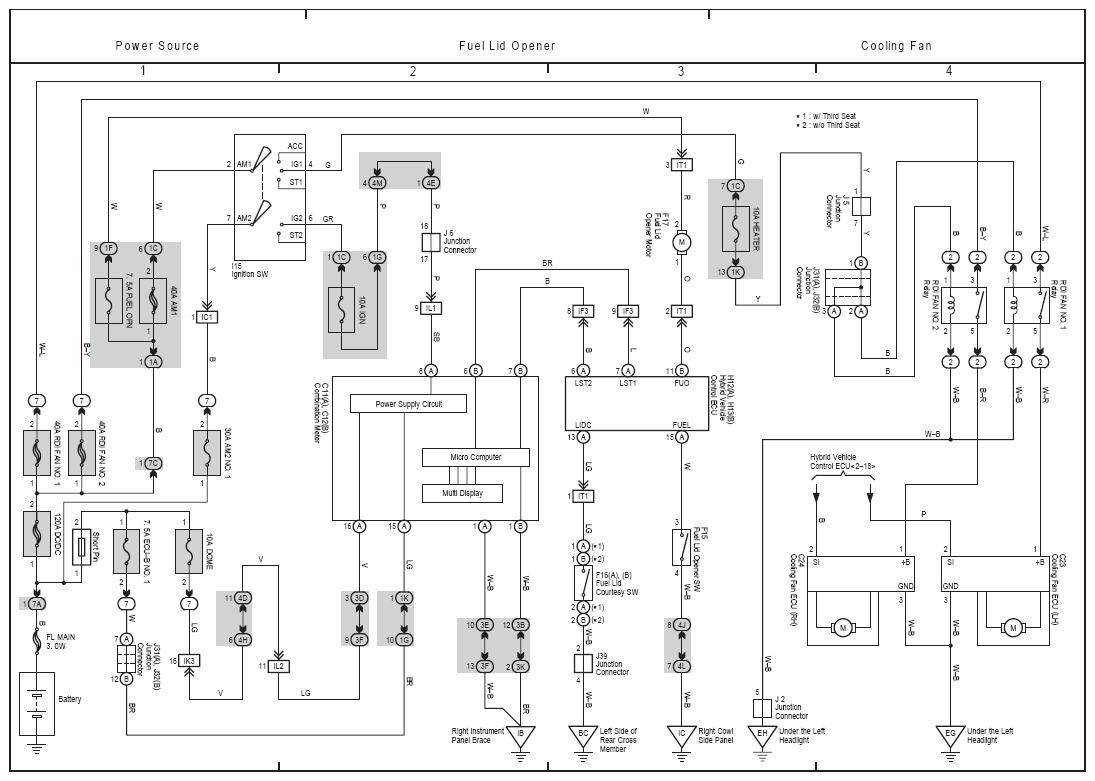

Fig 1: Fuel Lid Opener Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
