Combination Meter

WARNING: This page is about a different variant/trim than selected.

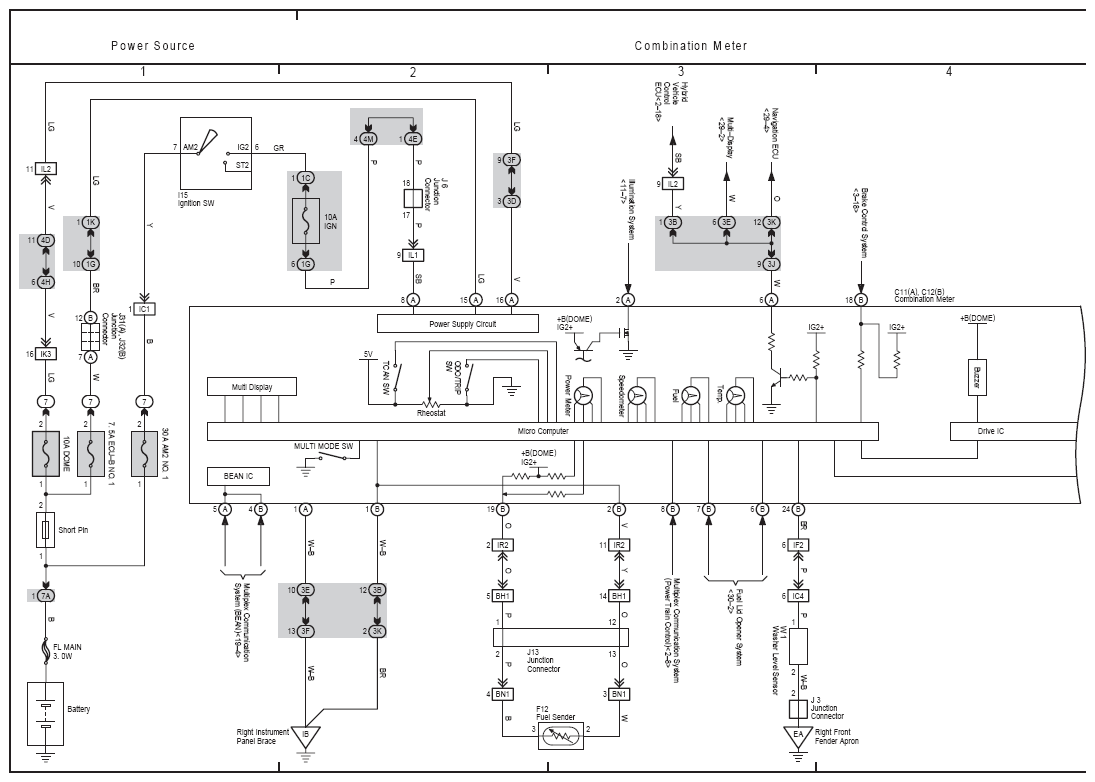

Fig 1: Combination Meter Wiring Diagram (1 Of 2)
G08782939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

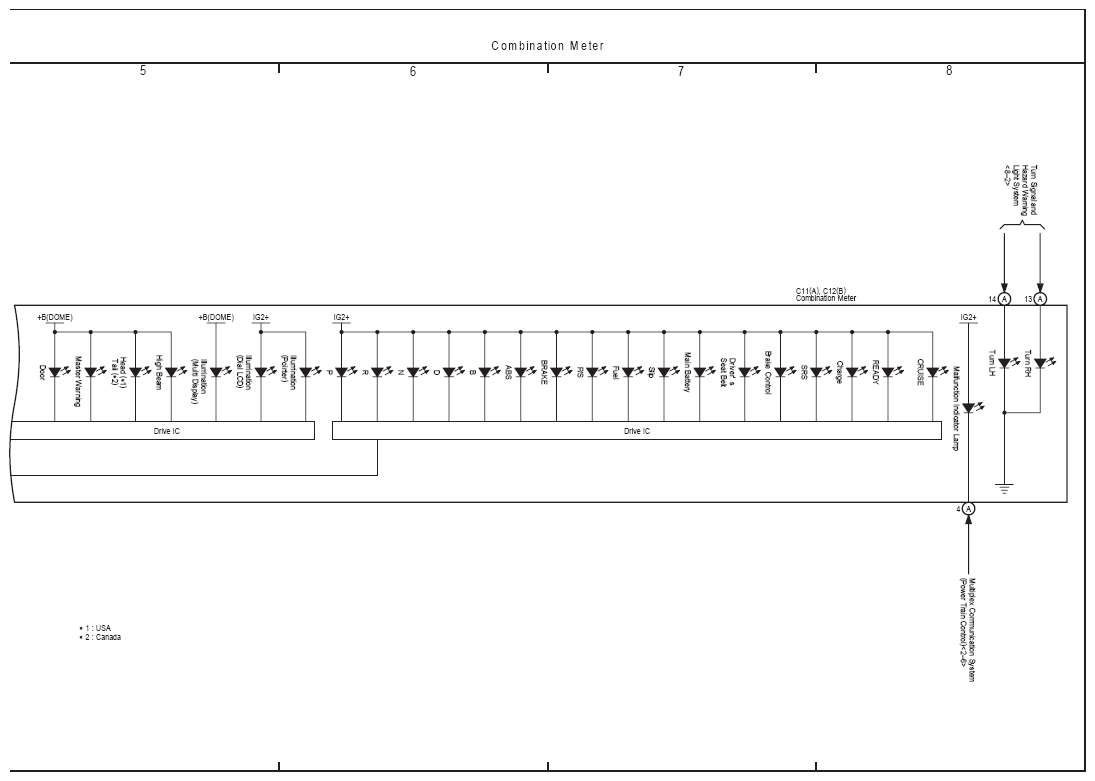

Fig 2: Combination Meter Wiring Diagram (2 Of 2)
G08782940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
