Cigarette Lighter, Power Outlet (110V), Power Outlet (12V)

WARNING: This page is about a different variant/trim than selected.

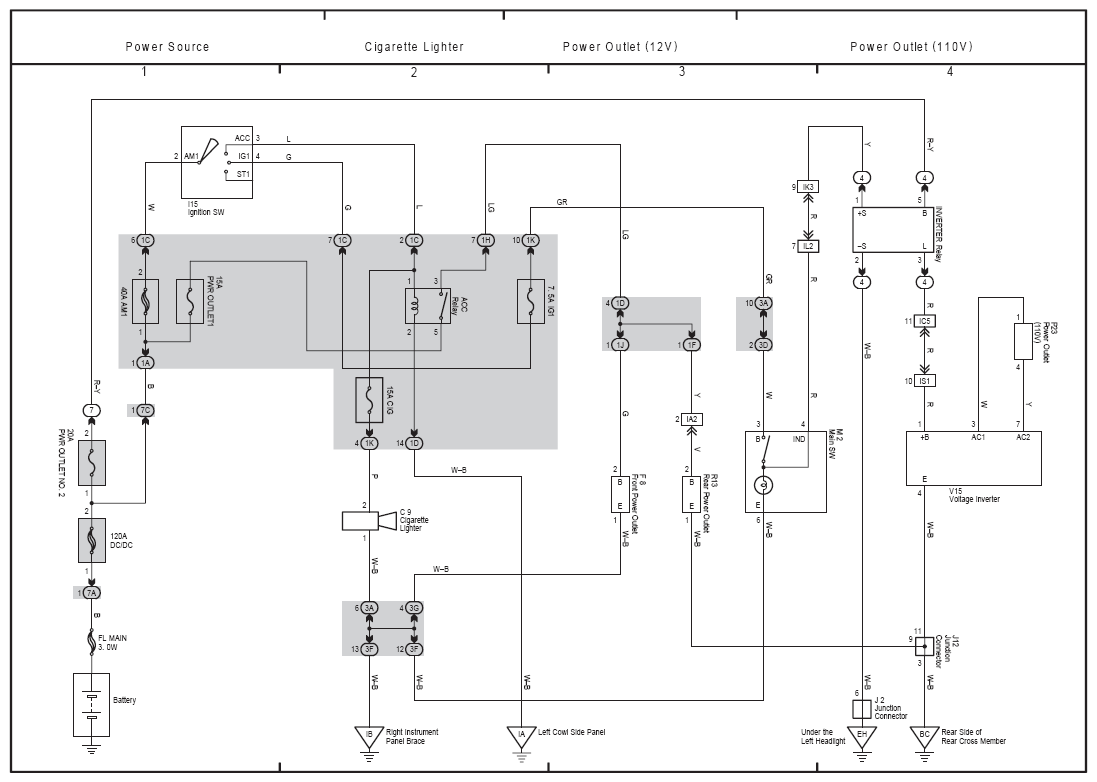

Fig 1: Power Outlet Wiring Diagram
G08782931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
