Automatic Light Control, Front Fog Light

WARNING: This page is about a different variant/trim than selected.

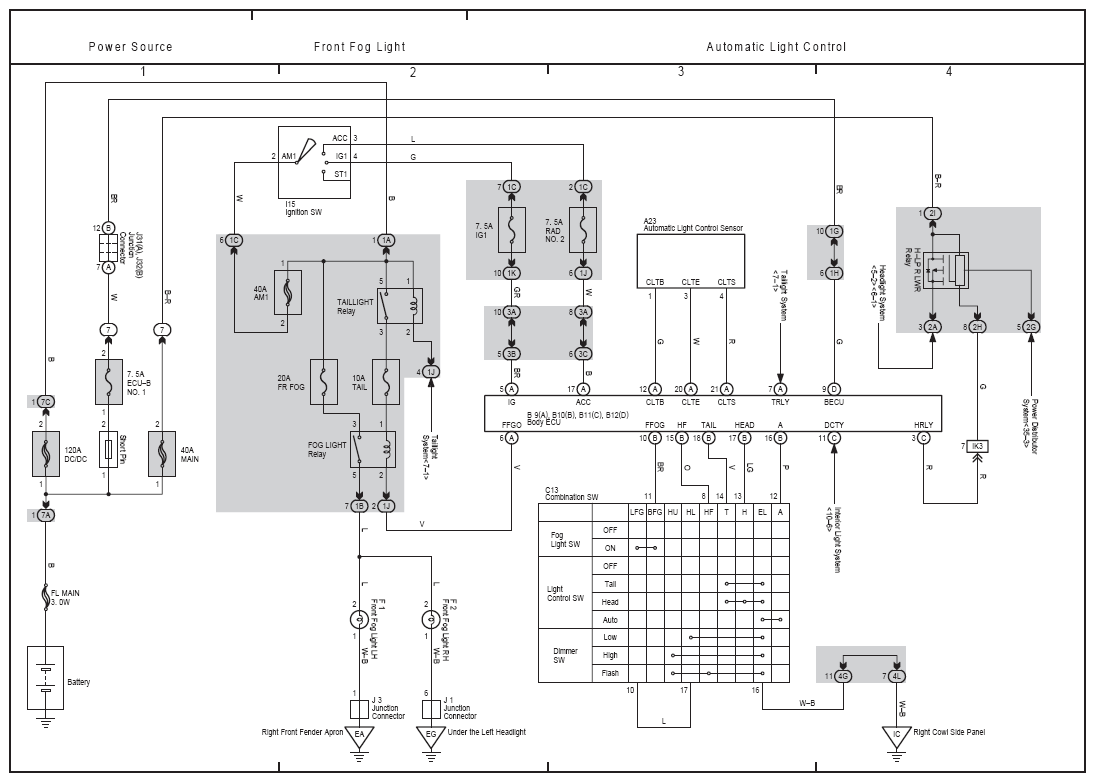

Fig 1: Automatic Light Control Wiring Diagram
G08782911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
