Section 57 (OEM Overall Electrical Wiring Diagram (Hybrid))
>>
Overall Electrical Wiring Diagram
>>
Audio System (8 Speaker)
Audio System (8 Speaker)
WARNING:
This page is about a different variant/trim than selected.

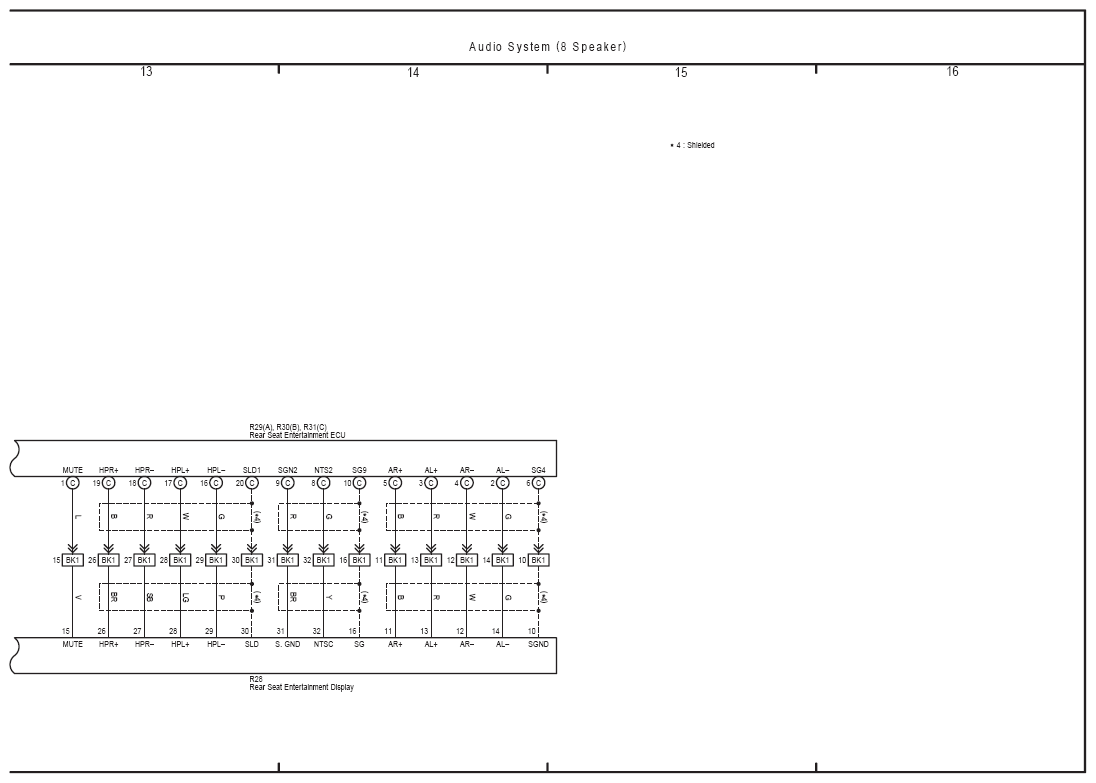

Fig 1: Audio System Wiring Diagram (8 Speaker; 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

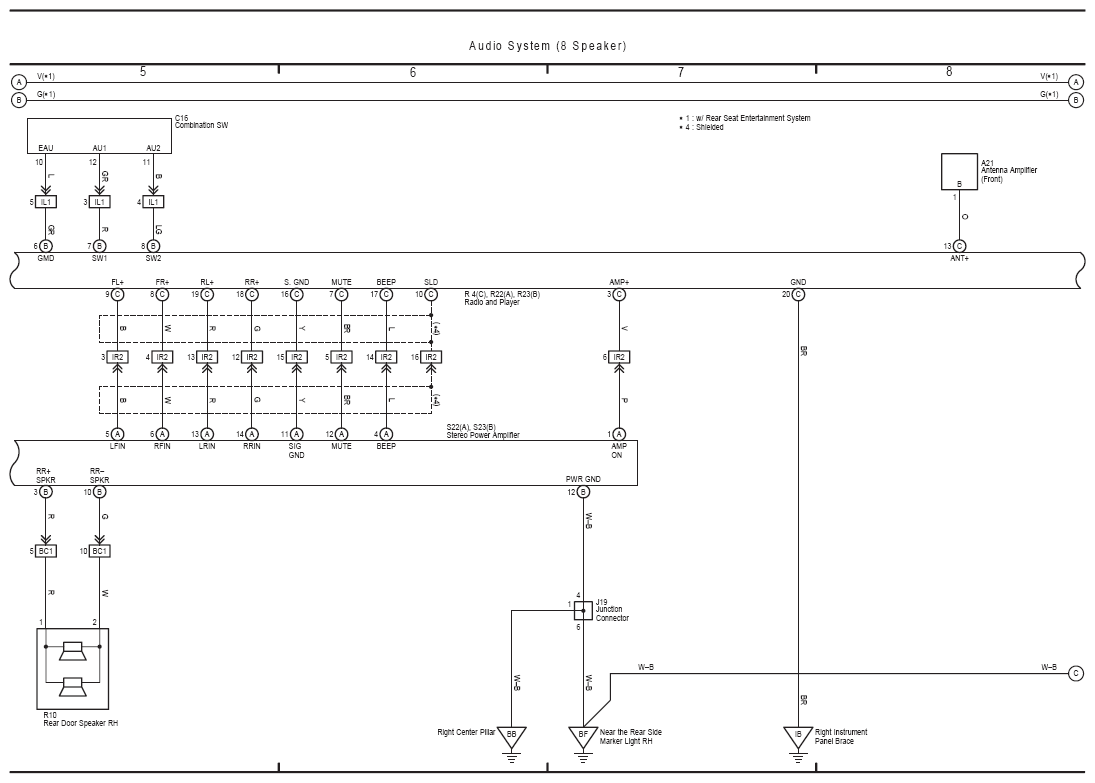

Fig 2: Audio System Wiring Diagram (8 Speaker; 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

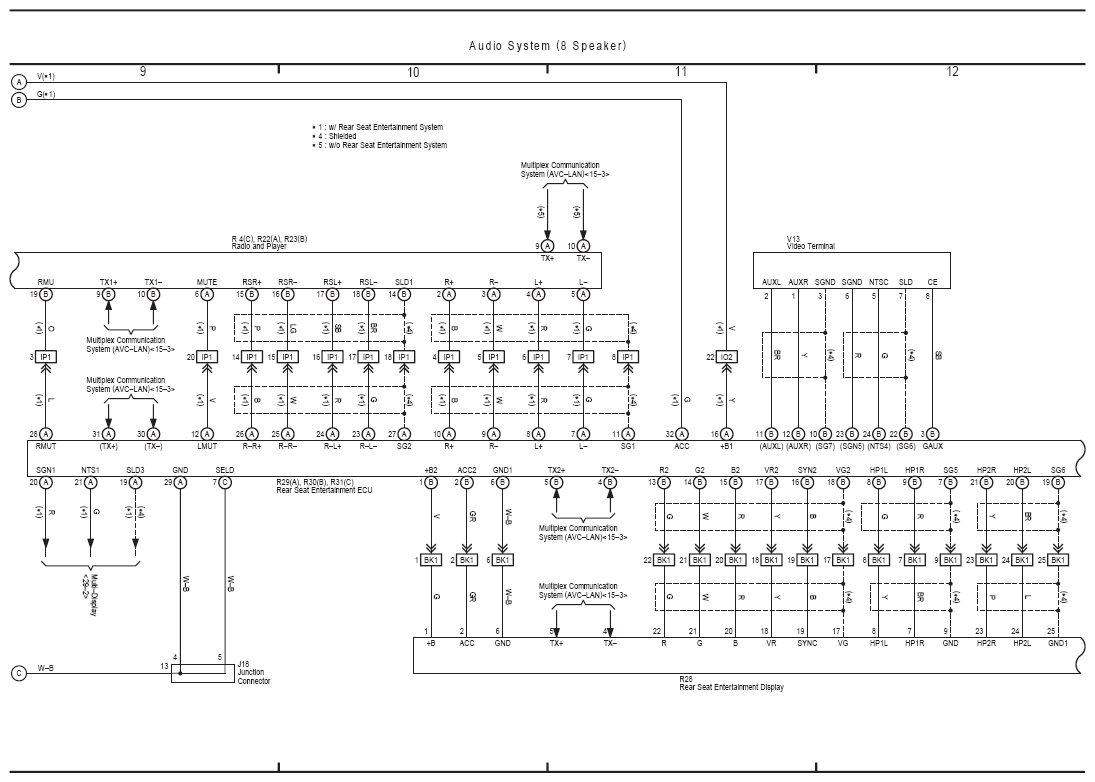

Fig 3: Audio System Wiring Diagram (8 Speaker; 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Audio System Wiring Diagram (8 Speaker; 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
