Air Conditioning (Automatic A/C)

WARNING: This page is about a different variant/trim than selected.

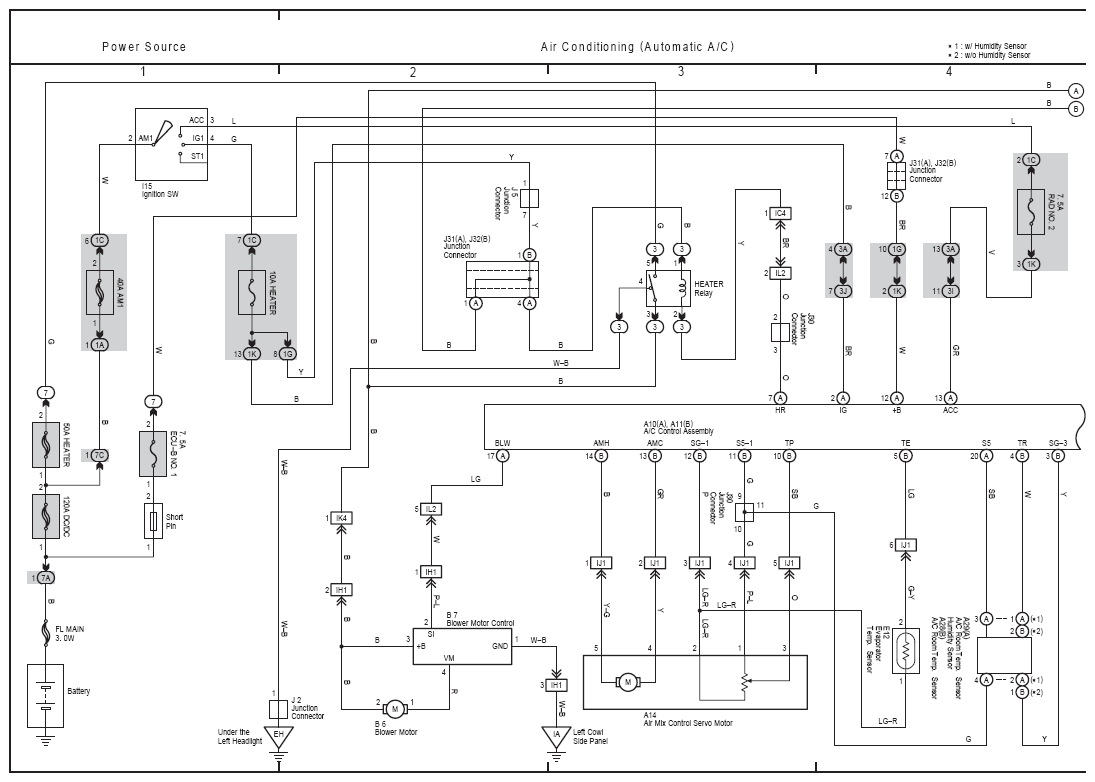

Fig 1: Air Conditioning Wiring Diagram (Automatic A/C; 1 Of 2)
G08782941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

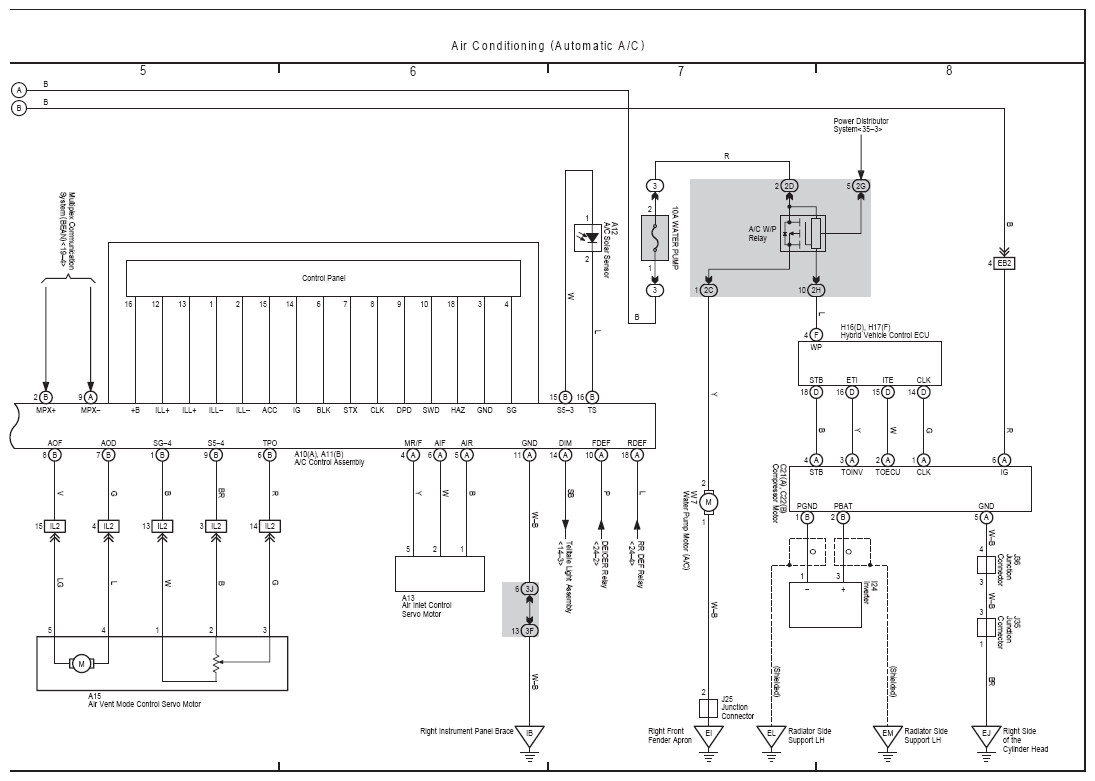

Fig 2: Air Conditioning Wiring Diagram (Automatic A/C; 2 Of 2)
G08782942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
