Rear Power Point Socket: Components

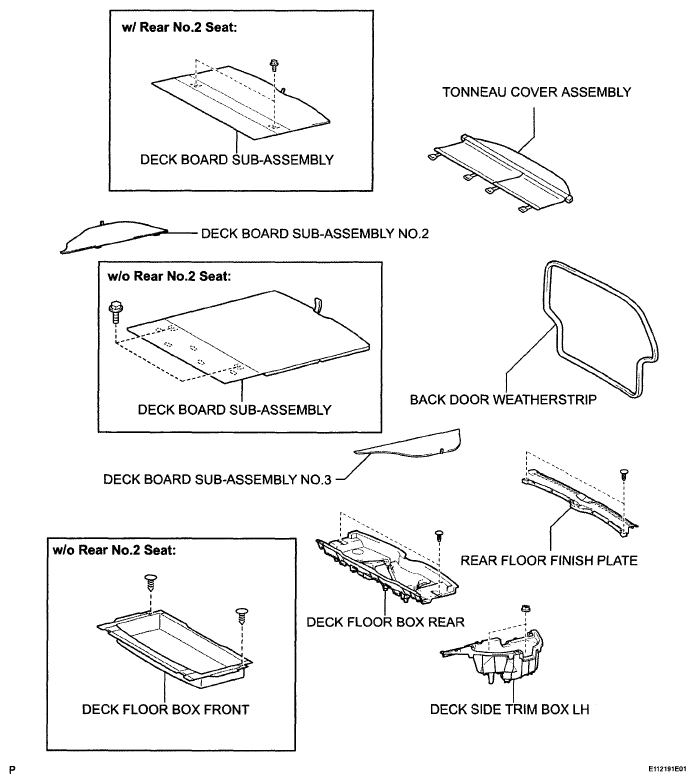

Fig 1: Identifying Rear Power Point Socket Components
G05243853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

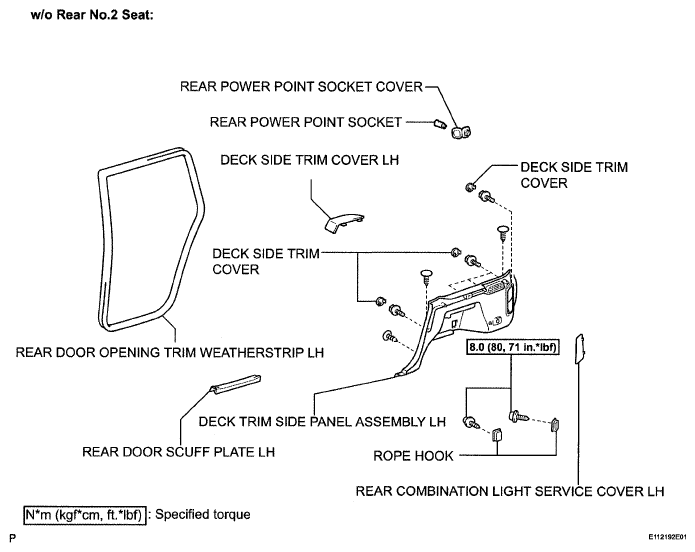

Fig 2: Rear Power Point Socket Replacement Components With Torque Specifications (W/O Rear No. 2 Seat)
G05243854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

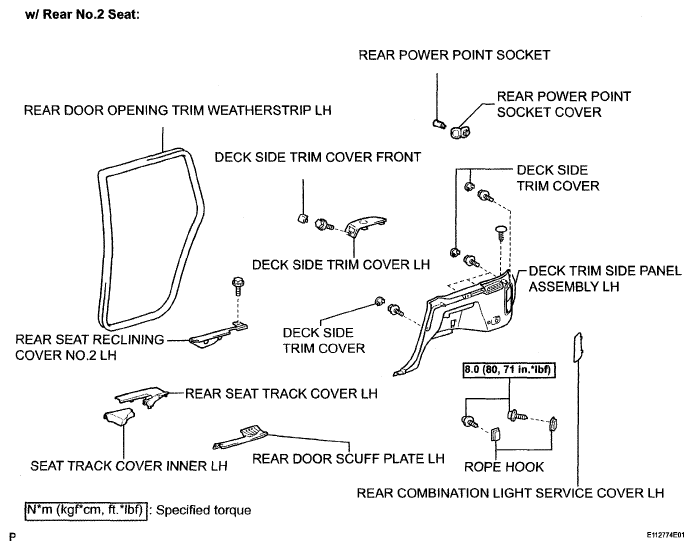

Fig 3: Rear Power Point Socket Replacement Components With Torque Specifications (W/ Rear No. 2 Seat)
G05205054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
