Position of Parts in Instrument Panel

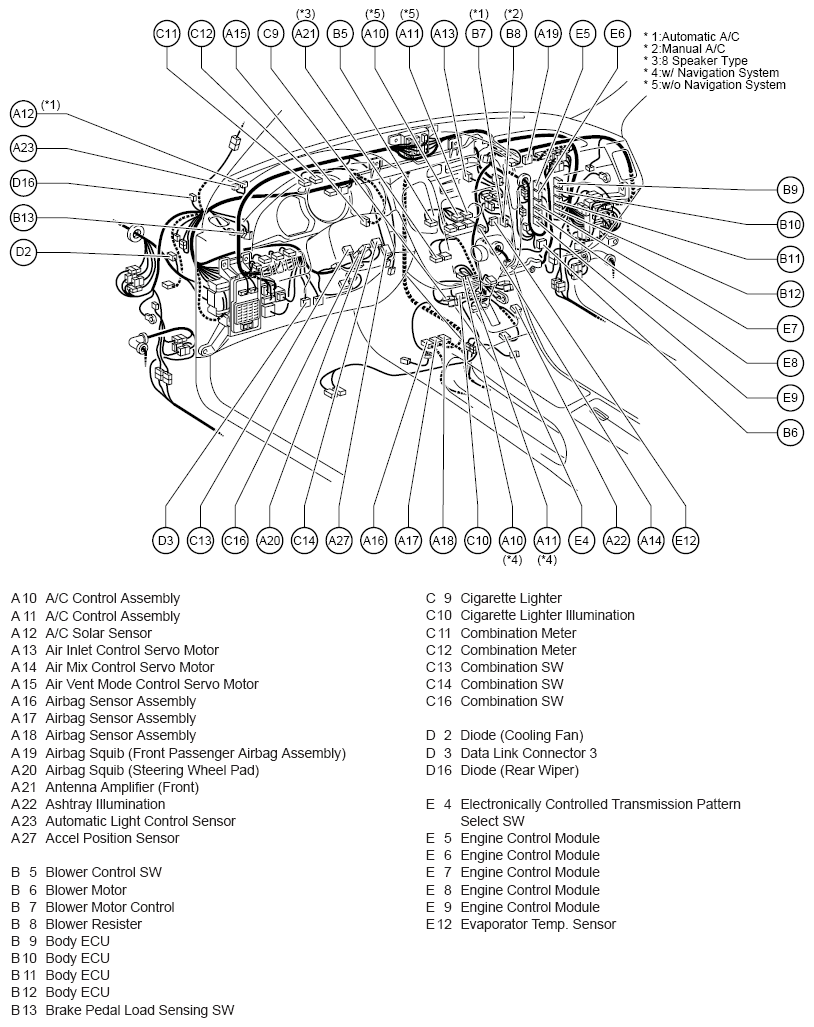

Fig 1: Instrument Panel Parts (1 Of 2)
G08860764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

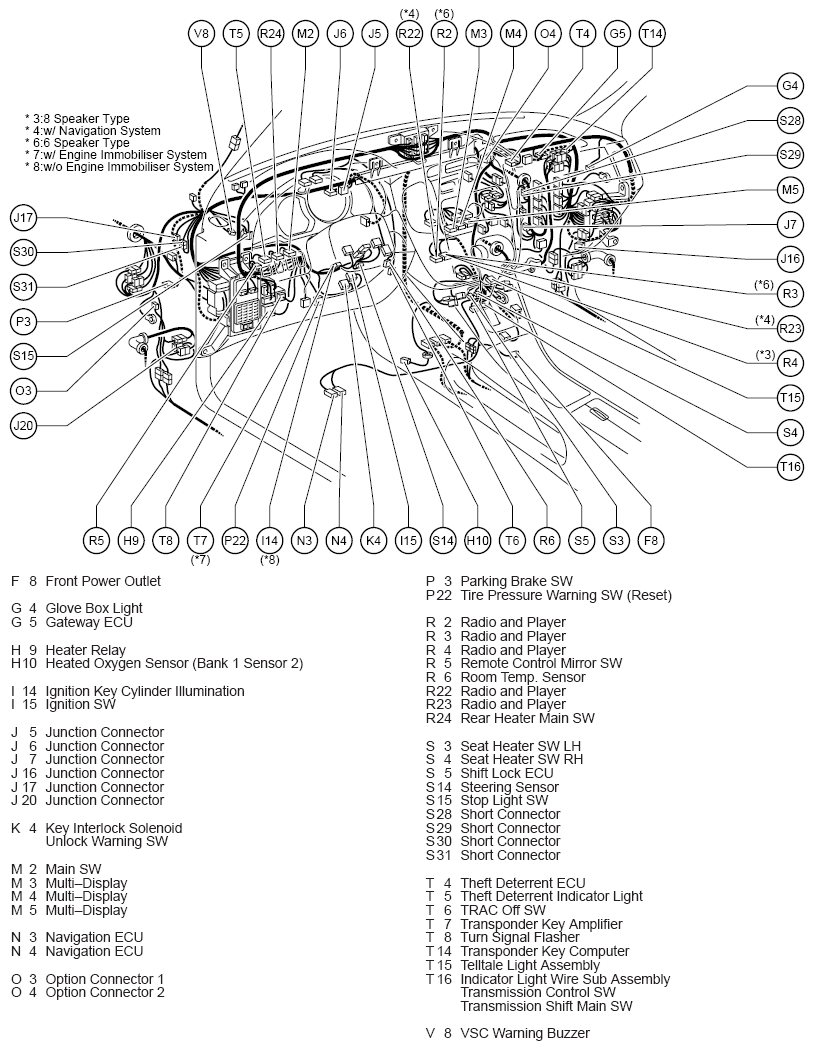

Fig 2: Instrument Panel Parts (2 Of 2)
G08860765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
