Position of Parts in Engine Compartment: 3MZ-FE

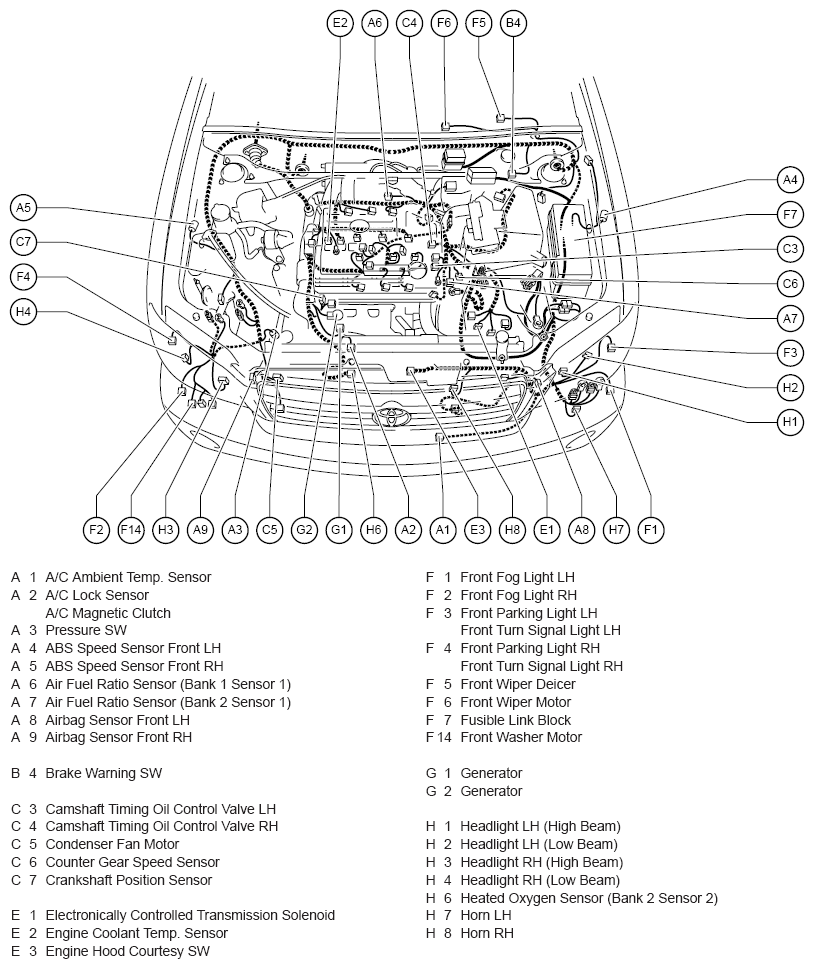

Fig 1: Engine Compartment Parts (3MZ-FE; 1 Of 2)
G08860760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

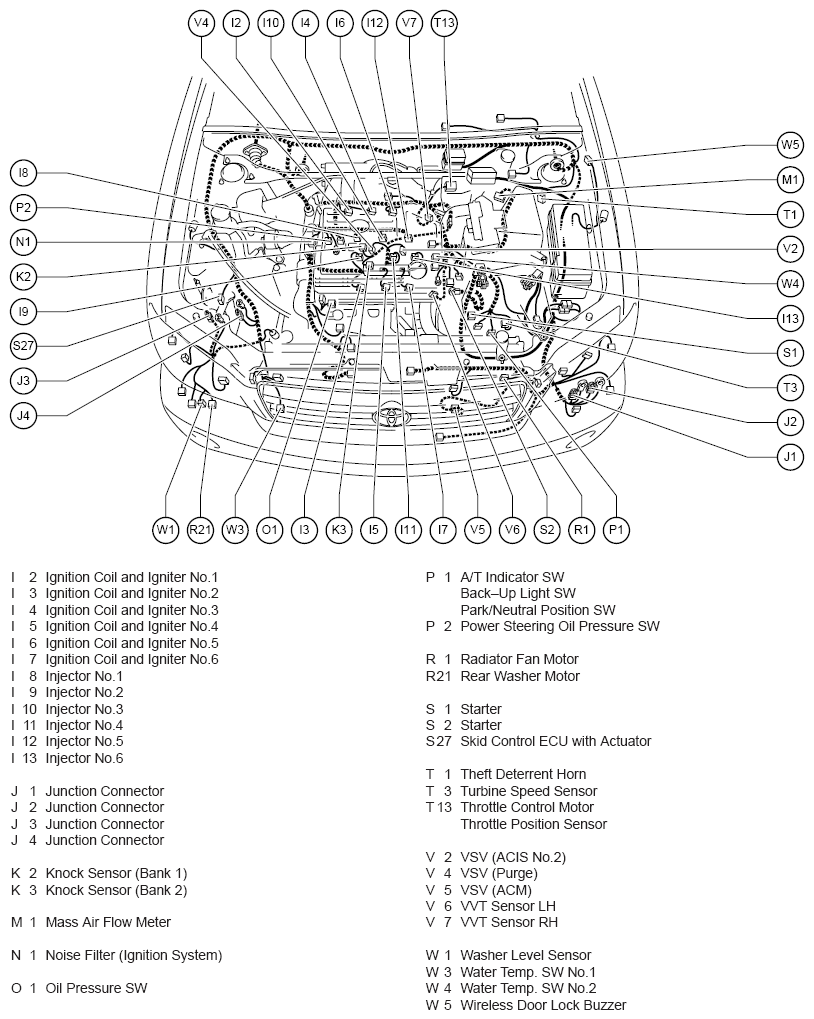

Fig 2: Engine Compartment Parts (3MZ-FE; 2 Of 2)
G08860761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
