Relay Block No. 4 Engine Compartment Left

Refer to Figure

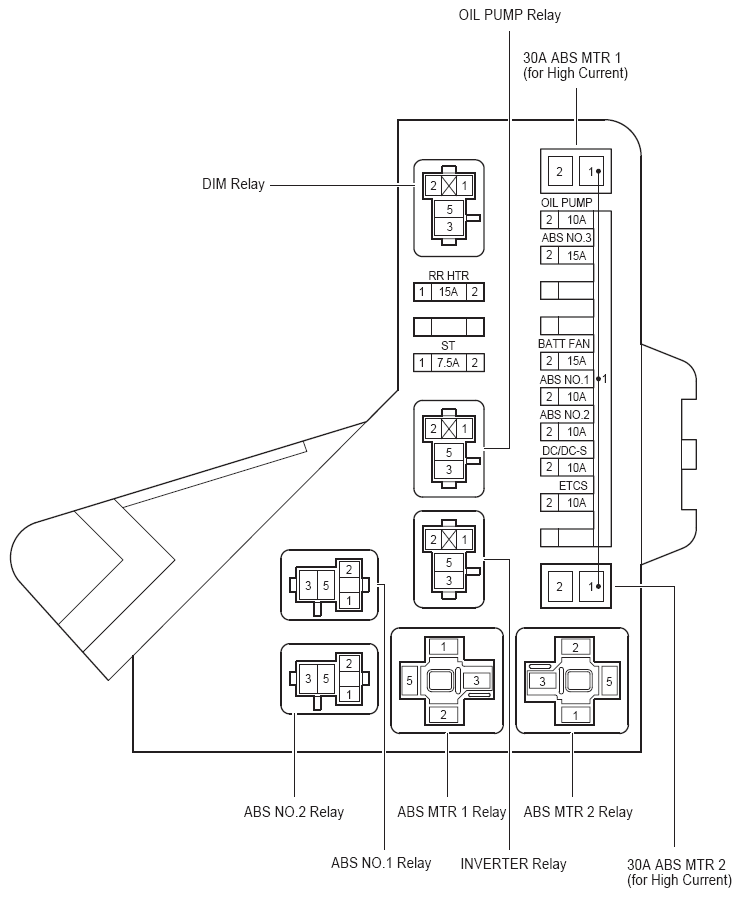

Fig 1: Engine Room R/B No. 4 Relay And Fuse Identification

G08782285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION
DIM Relay
Oil Pump Relay
ABS MTR 2 Relay
Inverter Relay
ABS MTR 1 Relay
ABS MTR No. 2 Relay
ABS MTR No. 2 Relay

Engine Room R/B No. 4 Fuse Identification Legend

Fuse		System
7.5A	ST	Engine Control
		Hybrid System
		Shift Control System
10A	ABS NO.1	Brake Control System
10A	ABS NO.1	Hybrid System
10A	ABS NO.2	Brake Control System
10A	ABS NO.2	Hybrid System
10A	DC/DC-S	Hybrid System
10A	DC/DC-S	Shift Control System
10A	ETCS	Cruise Control
		Engine Control
		Hybrid System
		Shift Control System
10A	OIL PUMP	Hybrid System
15A	ABS NO.3	Brake Control System
15A	BATT FAN	Hybrid System
15A	RR HTR	Rear Heater
30A	ABS MTR 1	Brake Control System
30A	ABS MTR 1	Hybrid System
30A	ABS MTR 2	Brake Control System
30A	ABS MTR 2	Hybrid System
