Relay Block No. 2 Engine Compartment Left

Refer to Figure

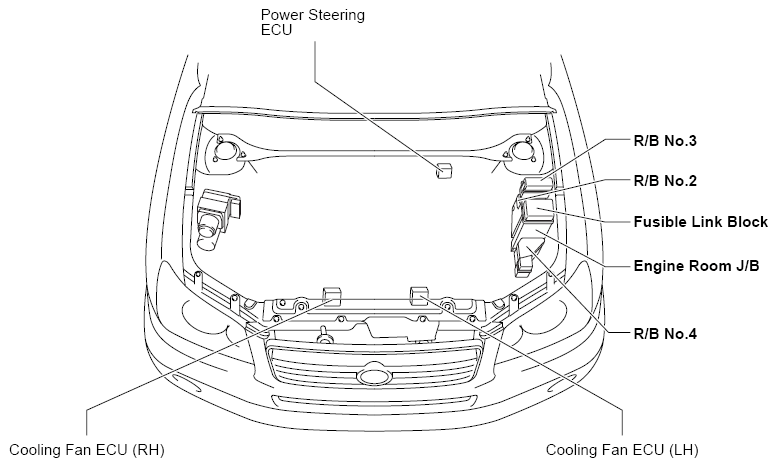

Fig 1: Engine Room R/B No. 2 Relay Locations
G08782282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
RDI Fan No. 1 Relay
RDI Fan No. 2 Relay
C/OPN Relay
A/F Relay
IGCT Relay
