Overall Electrical Wiring Diagram: Taillight

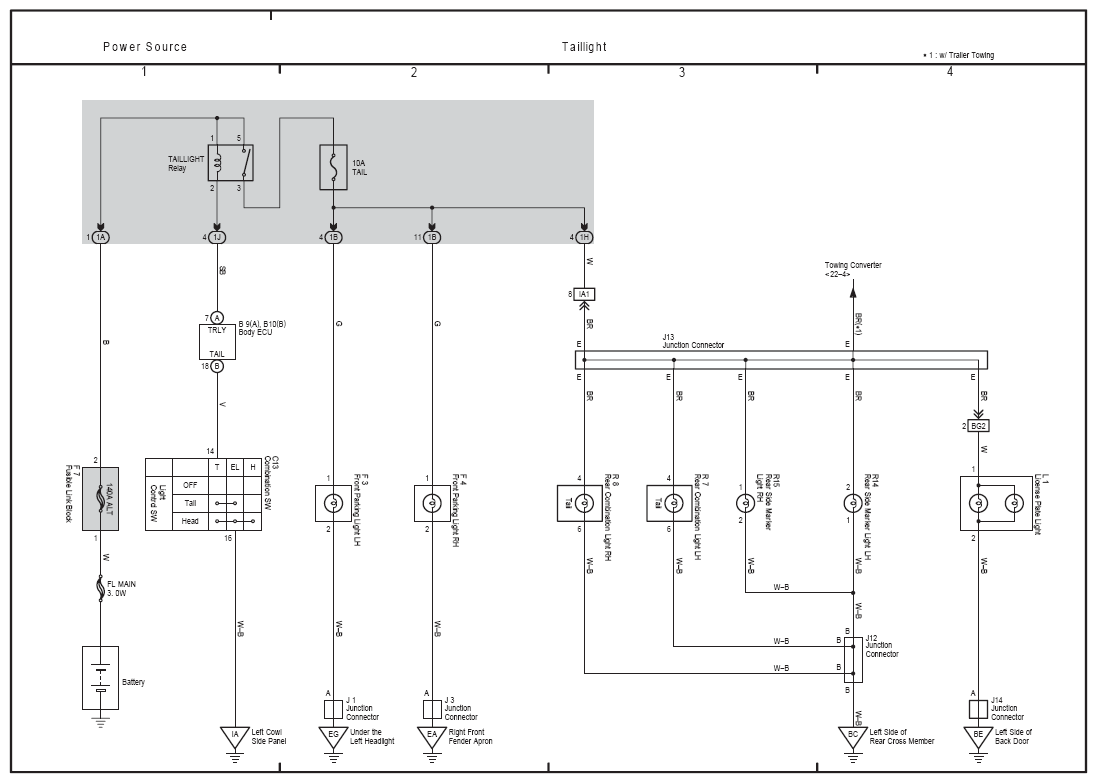

Fig 1: Taillight Electrical Wiring Diagram

G08860800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
