Radiator Fan and Condenser Fan (3MZ-FE)

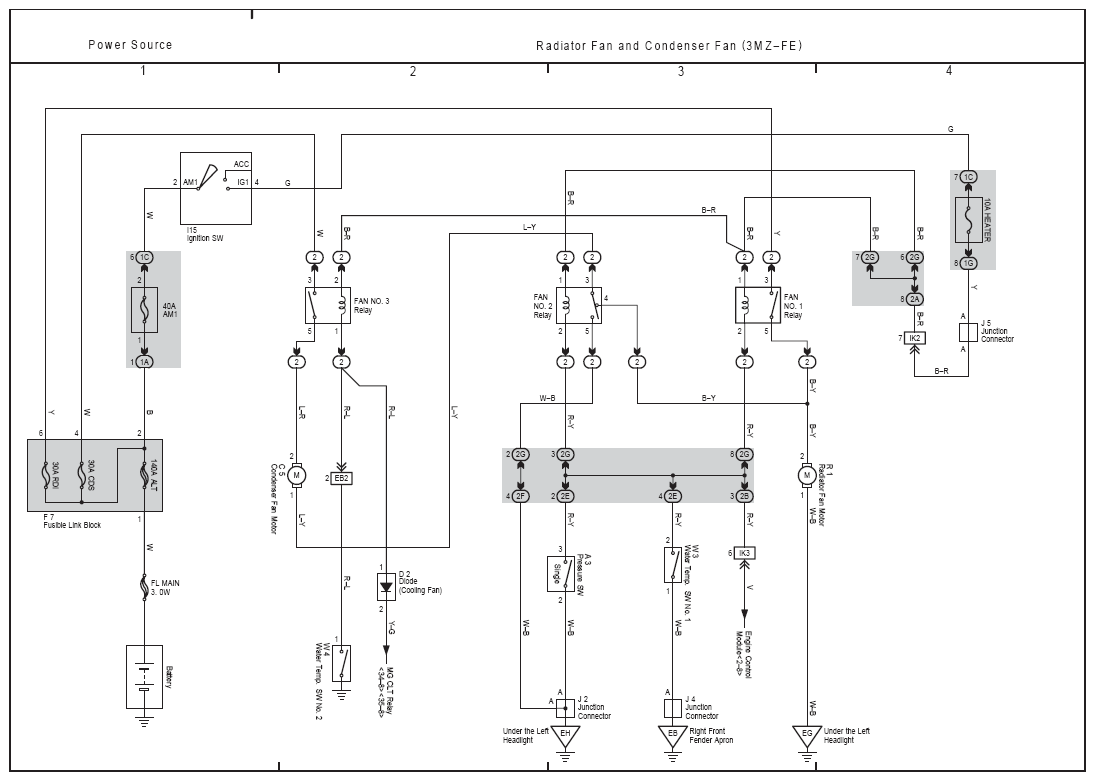

Fig 1: Radiator Fan And Condenser Fan Electrical Wiring Diagram (3MZ-FE)

G08860841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
