Radiator Fan and Condenser Fan (2AZ-FE)

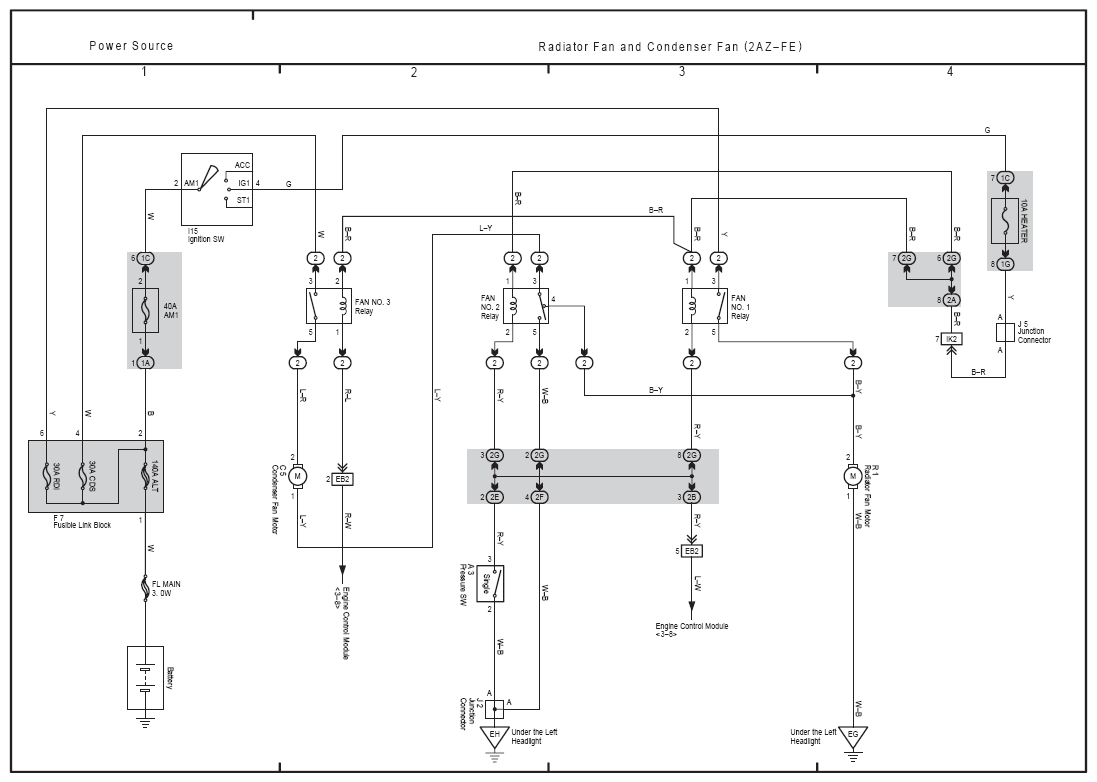

Fig 1: Radiator Fan And Condenser Fan Electrical Wiring Diagram (2AZ-FE)

G08860842
