Power Window

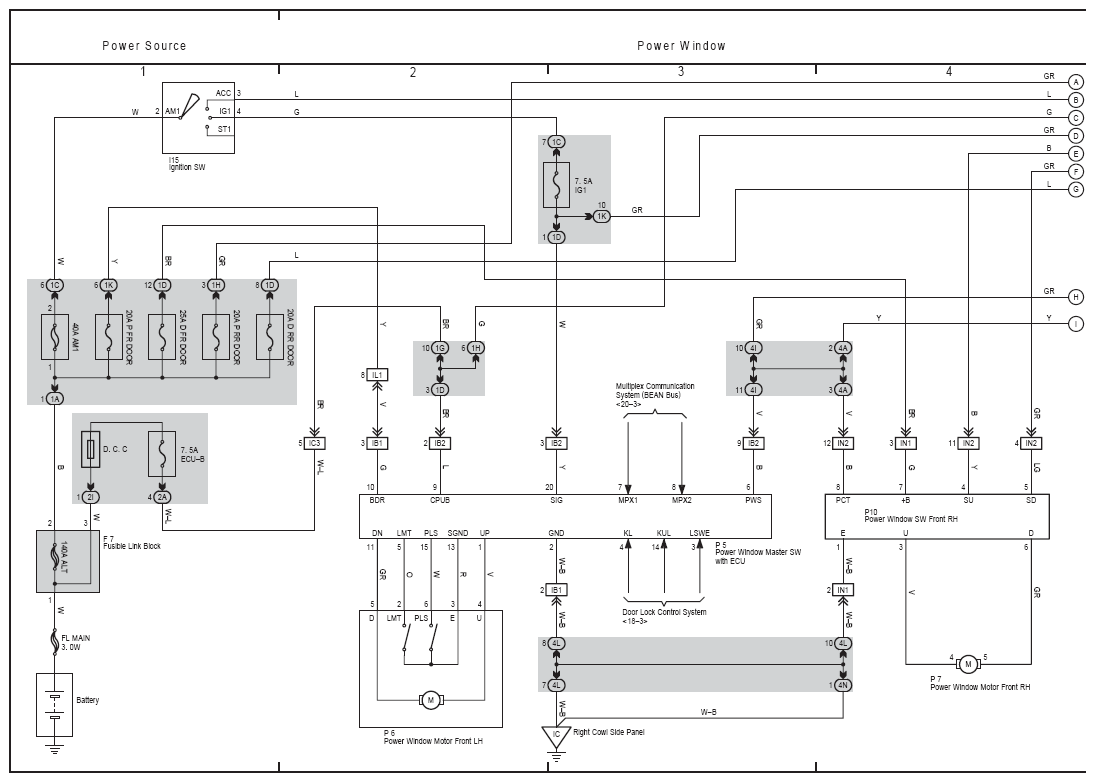

Fig 1: Power Window Electrical Wiring Diagram (1 Of 2)
G08860818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

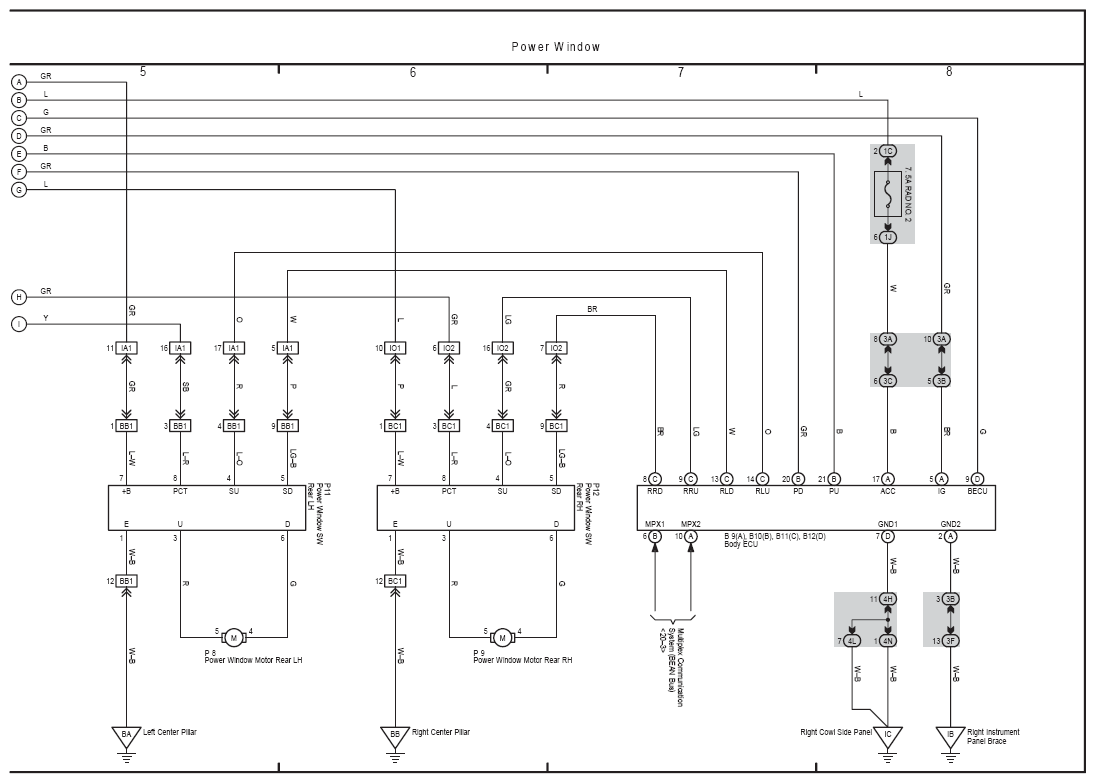

Fig 2: Power Window Electrical Wiring Diagram (2 Of 2)
G08860819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
