Navigation System

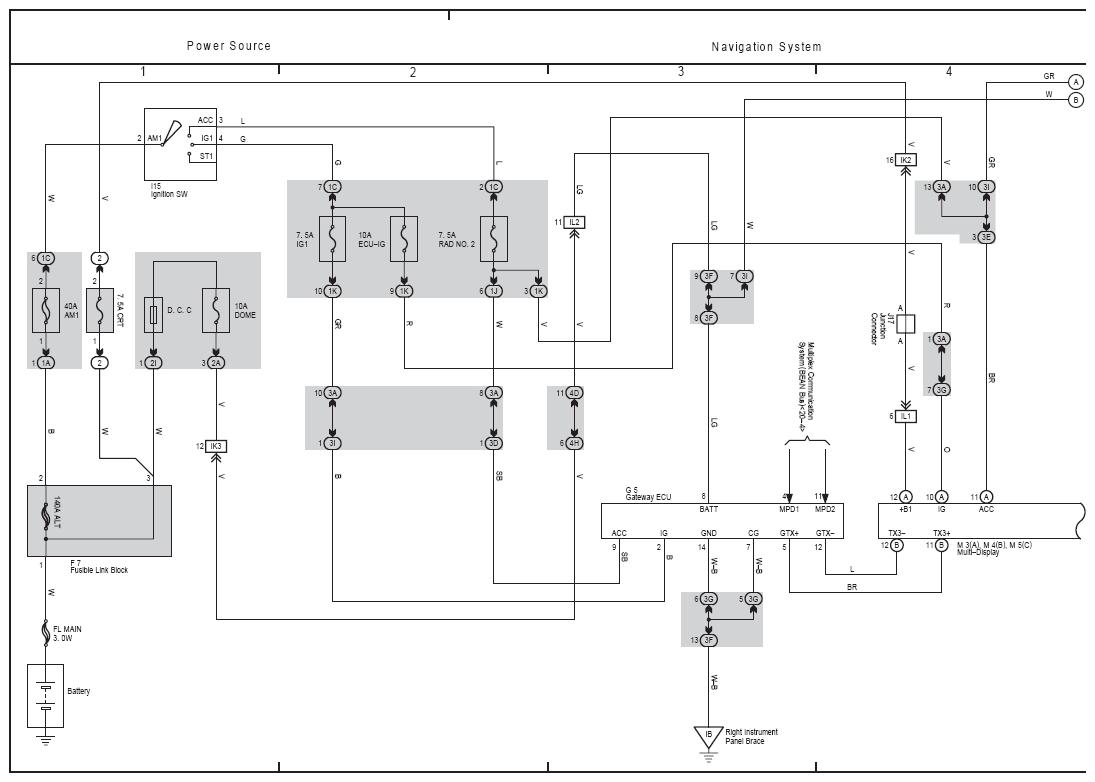

Fig 1: Navigation System Electrical Wiring Diagram (1 Of 2)
G08860836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

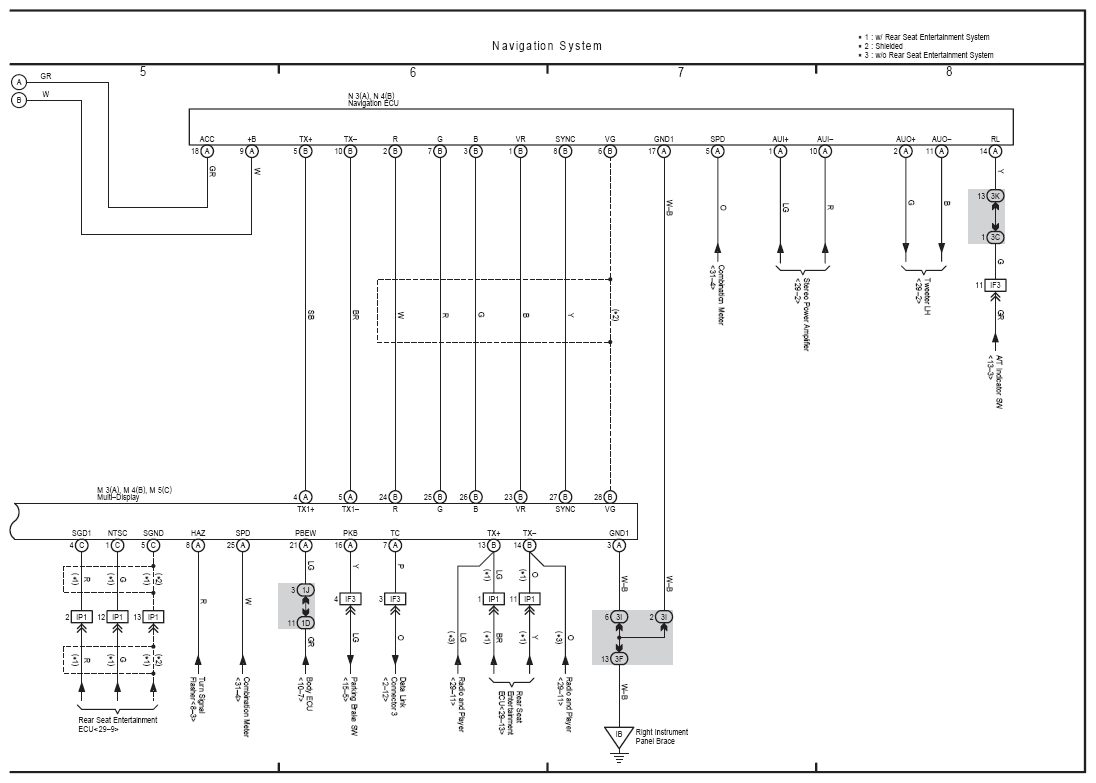

Fig 2: Navigation System Electrical Wiring Diagram (2 Of 2)
G08860837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
