Key Reminder, Light Auto Turn Off System, Seat Belt Warning

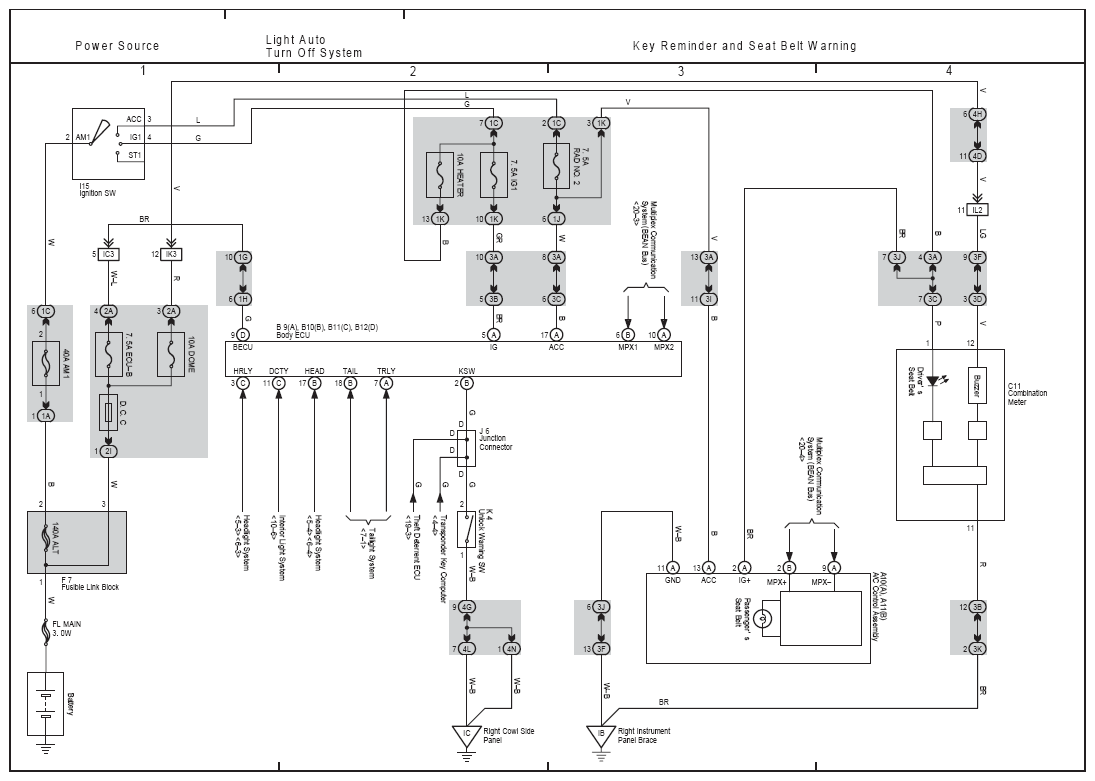

Fig 1: Light Auto Turn Off System Electrical Wiring Diagram

G08860829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
