Overall Electrical Wiring Diagram: Illumination

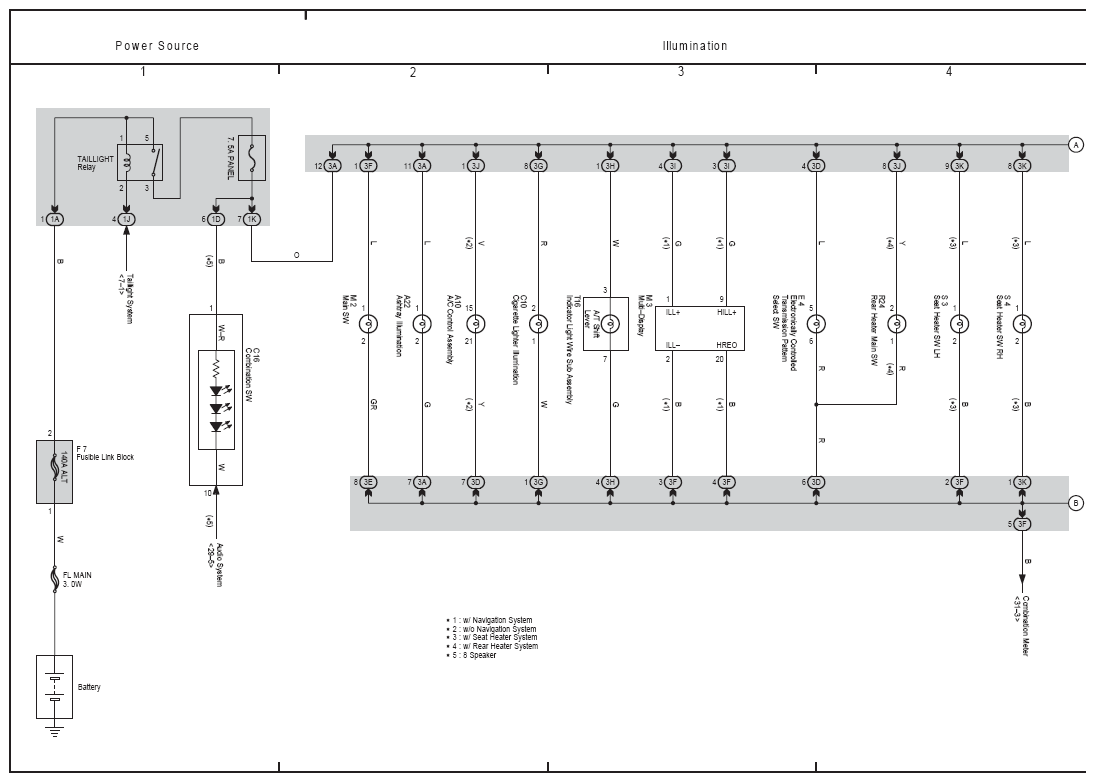

Fig 1: Illumination Electrical Wiring Diagram (1 Of 2)
G08860805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

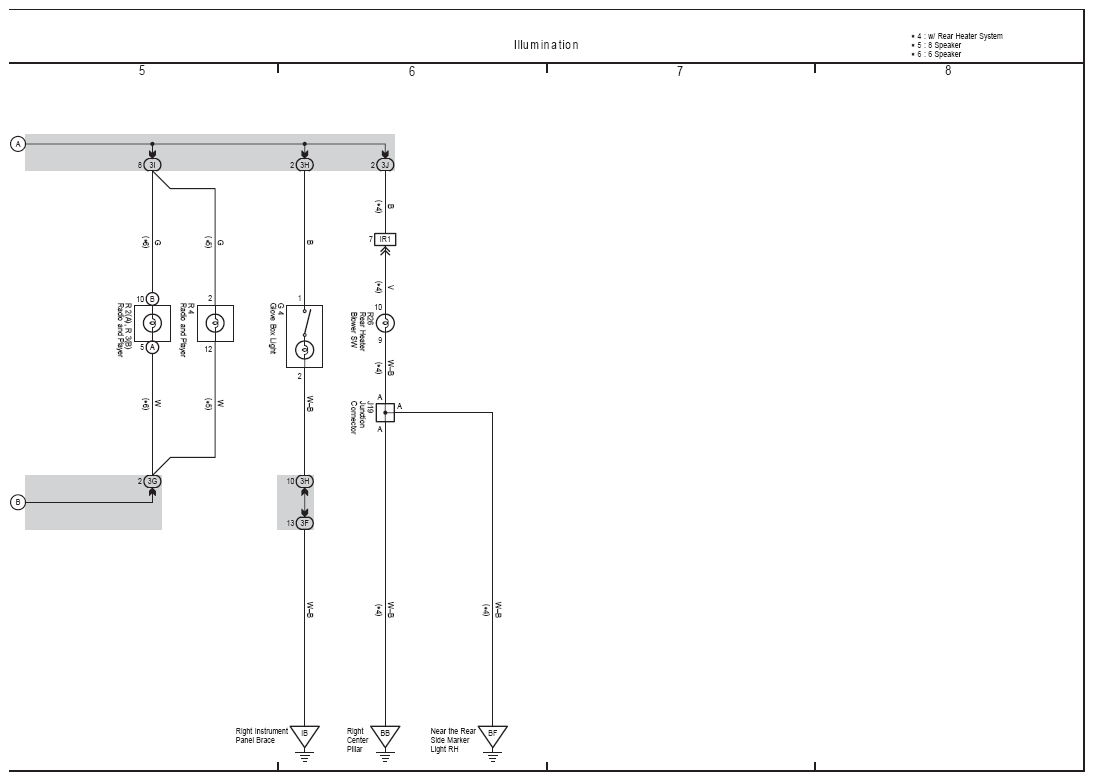

Fig 2: Illumination Electrical Wiring Diagram (2 Of 2)
G08860806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
