Headlight (w/o Daytime Running Light)

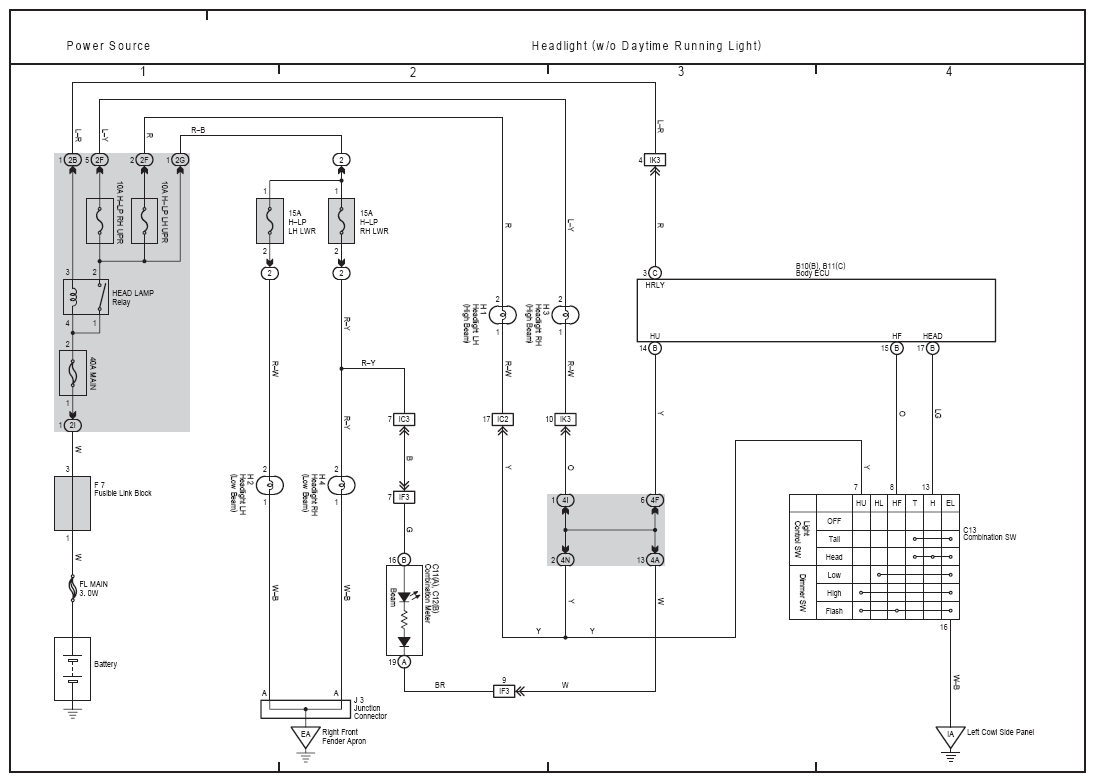

Fig 1: Headlight (Without Daytime Running Light) Electrical Wiring Diagram

G08860799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
