Garage Door Opener, Interior Light

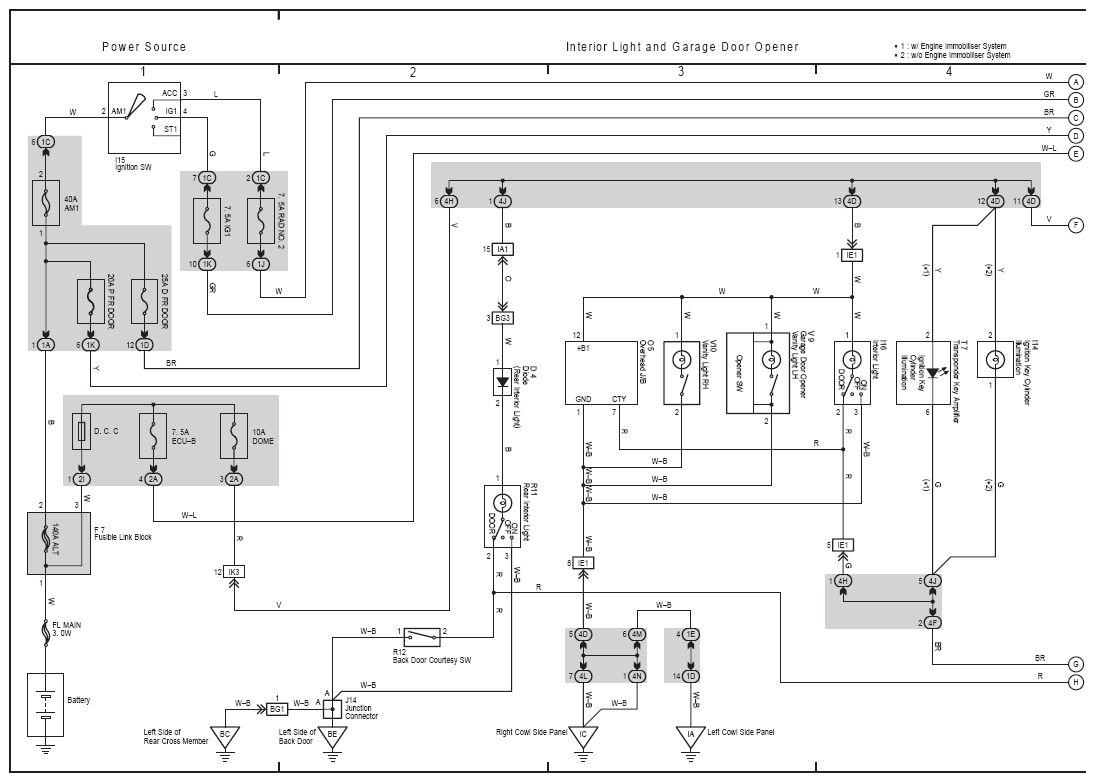

Fig 1: Interior Light And Garage Door Opener Electrical Wiring Diagram (1 Of 2)
G08860803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

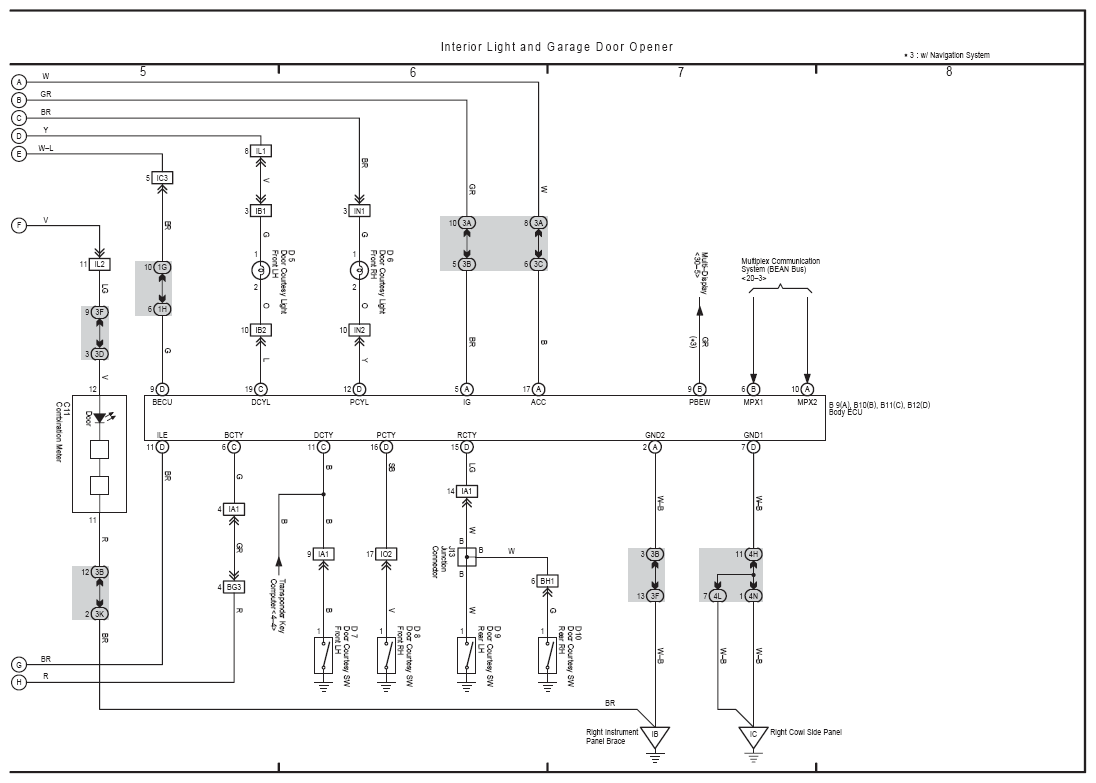

Fig 2: Interior Light And Garage Door Opener Electrical Wiring Diagram (2 Of 2)
G08860804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
