Front Deicer, Mirror Heater, Rear Window Defogger

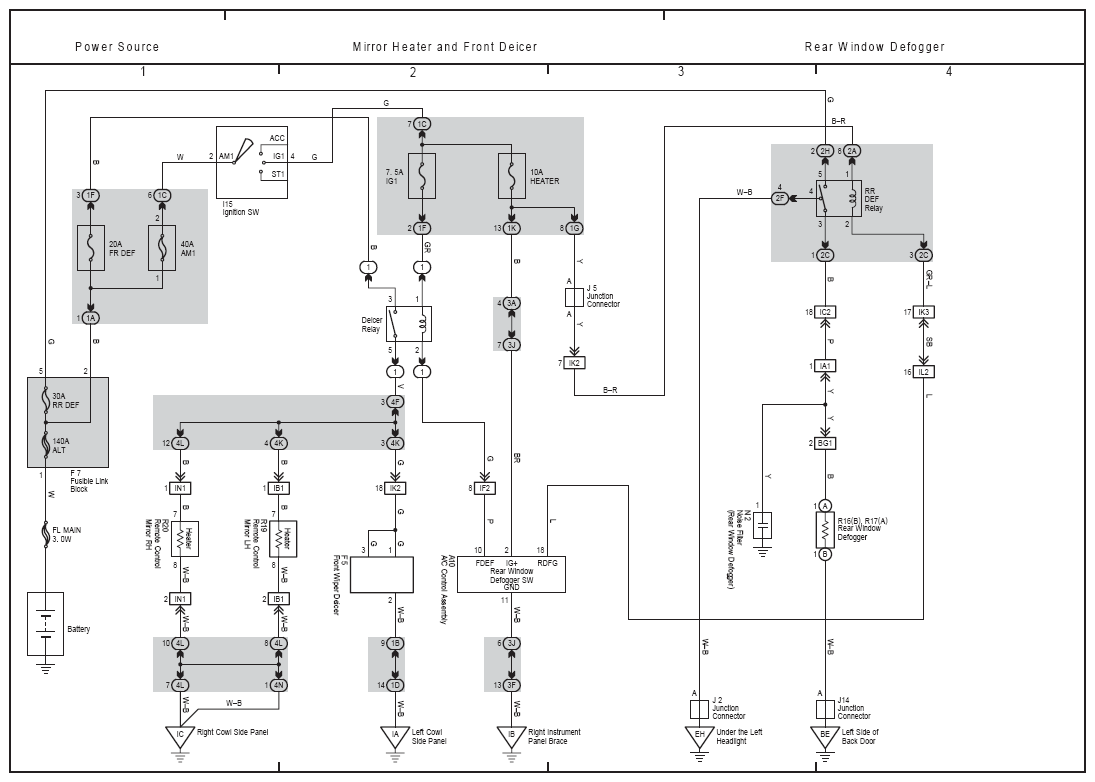

Fig 1: Mirror Heater And Front Deicer Electrical Wiring Diagram

G08860828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
