Electronically Controlled Transmission and A/T Indicator (3MZ-FE)

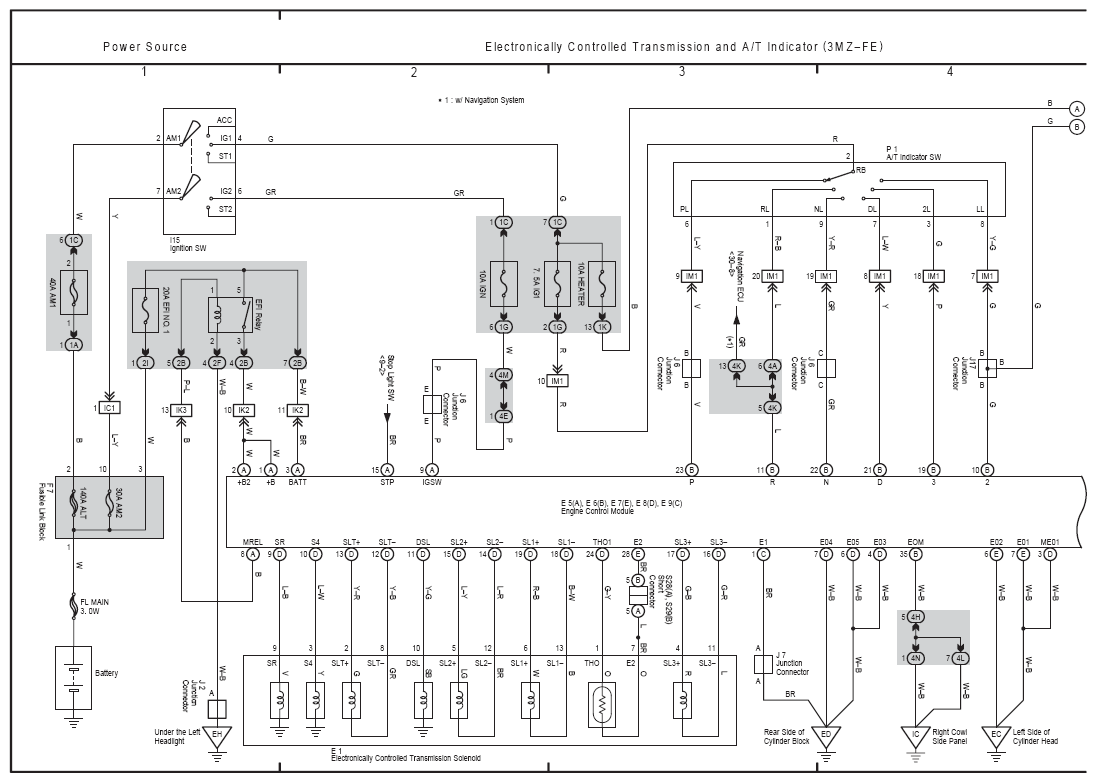

Fig 1: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (3MZ-FE; 1 Of 2)
G08860808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

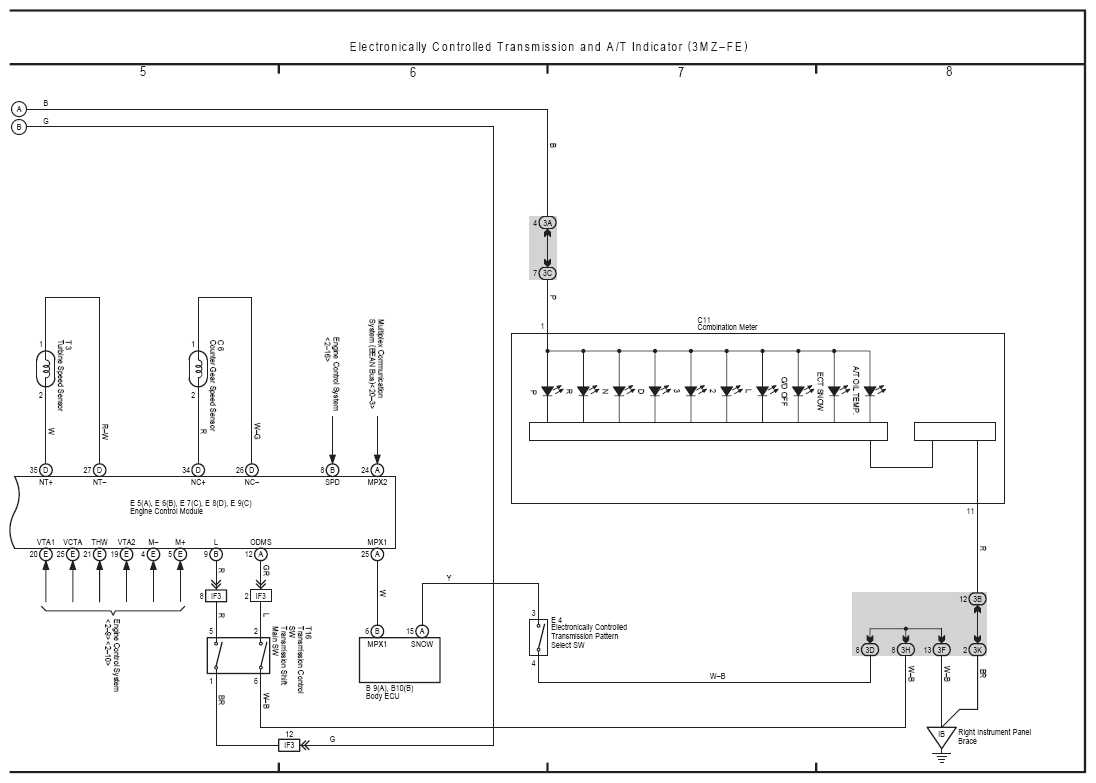

Fig 2: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (3MZ-FE; 2 Of 2)
G08860809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
