Door Lock Control, Wireless Door Lock Control

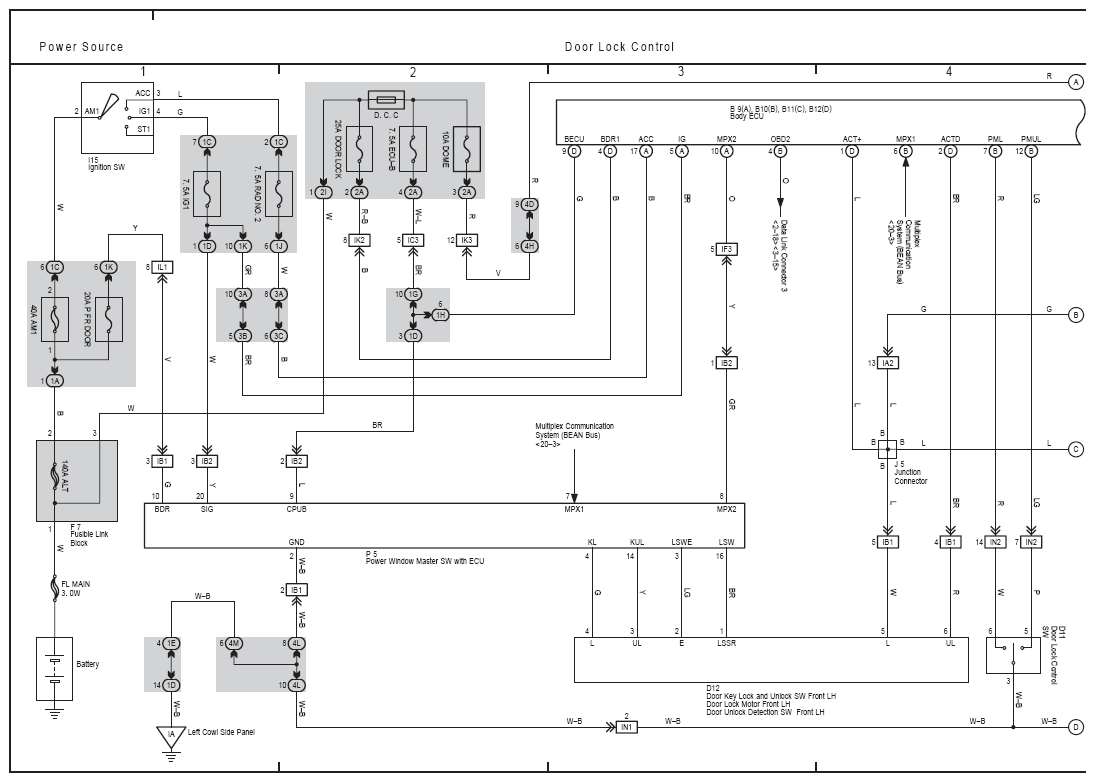

Fig 1: Door Lock Control Electrical Wiring Diagram (1 Of 2)
G08860820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

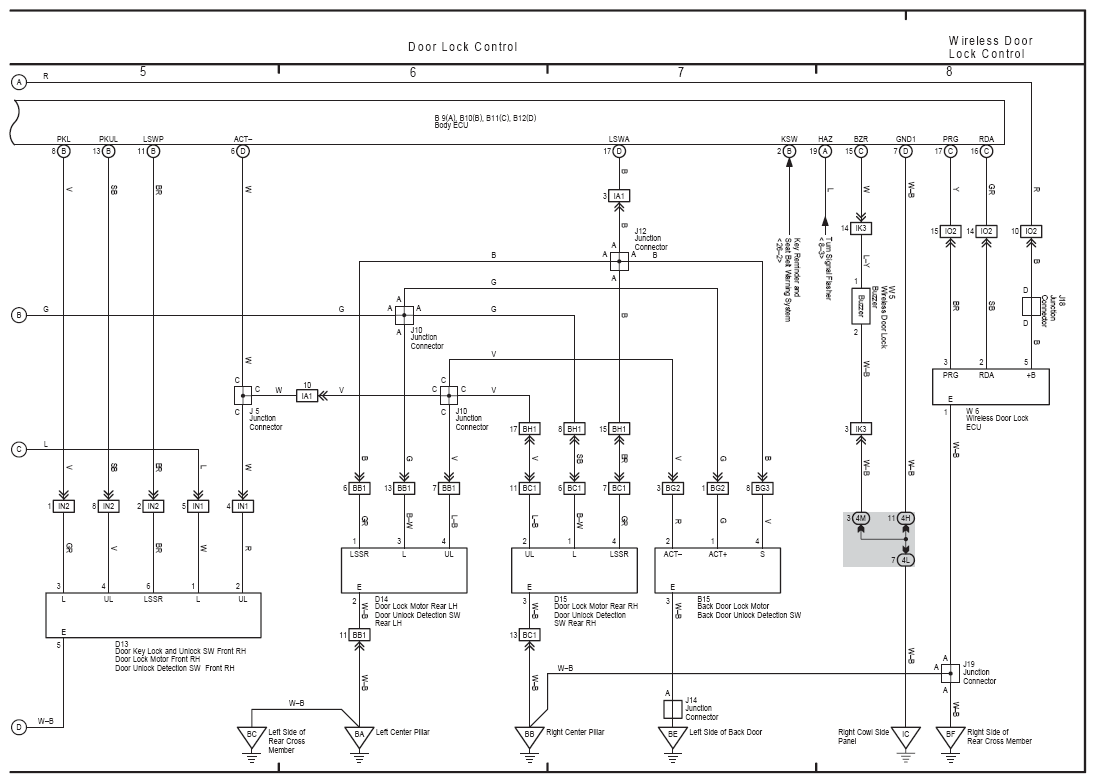

Fig 2: Door Lock Control Electrical Wiring Diagram (2 Of 2)
G08860821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
