Cruise Control (3MZ-FE), Engine Control (3MZ-FE)

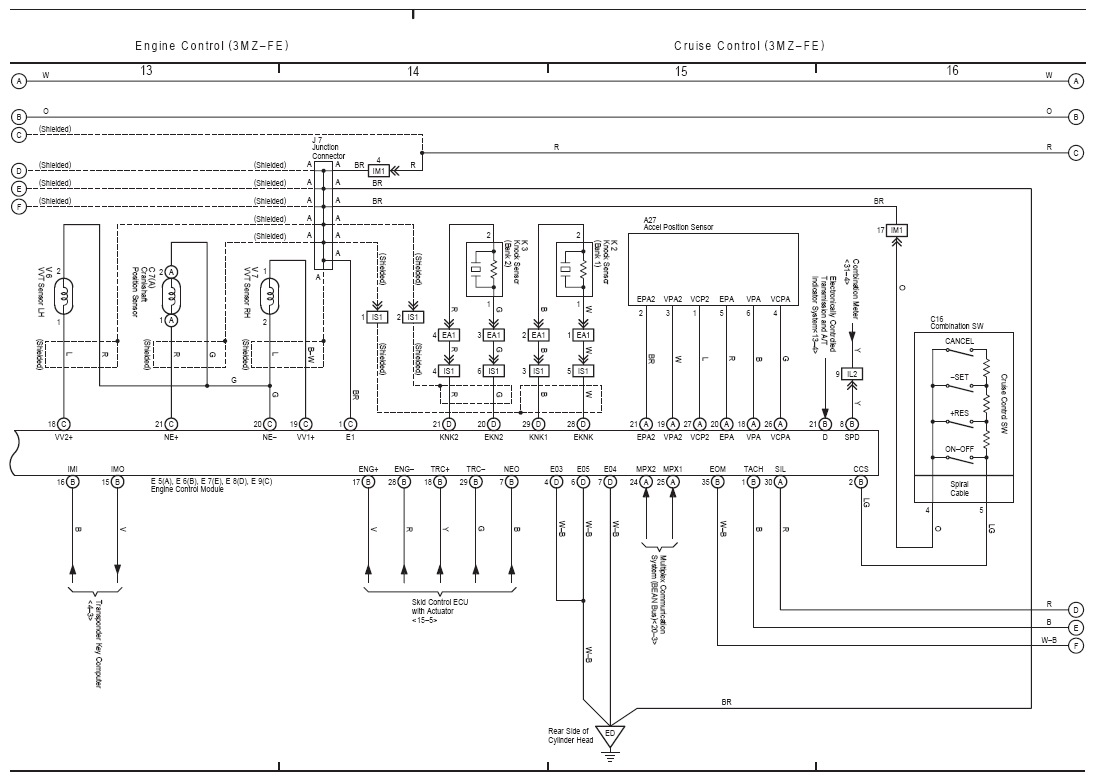

Fig 1: Engine Control Electrical Wiring Diagram (3MZ-FE; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

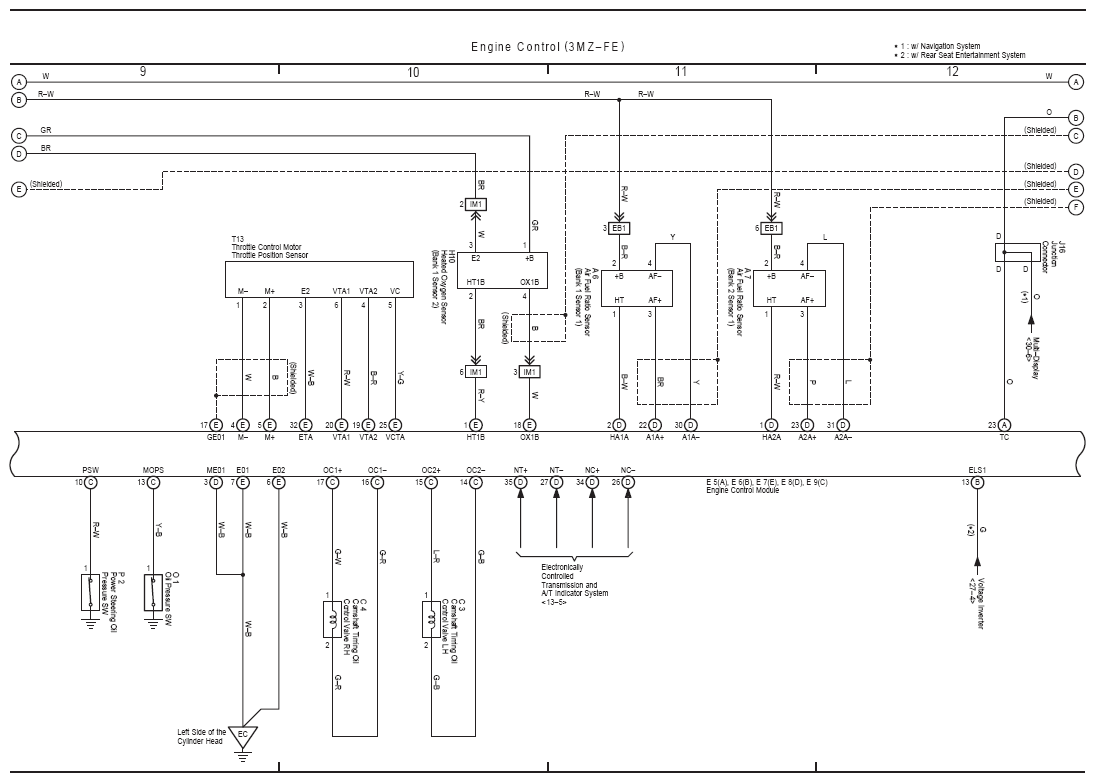

Fig 2: Engine Control Electrical Wiring Diagram (3MZ-FE; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

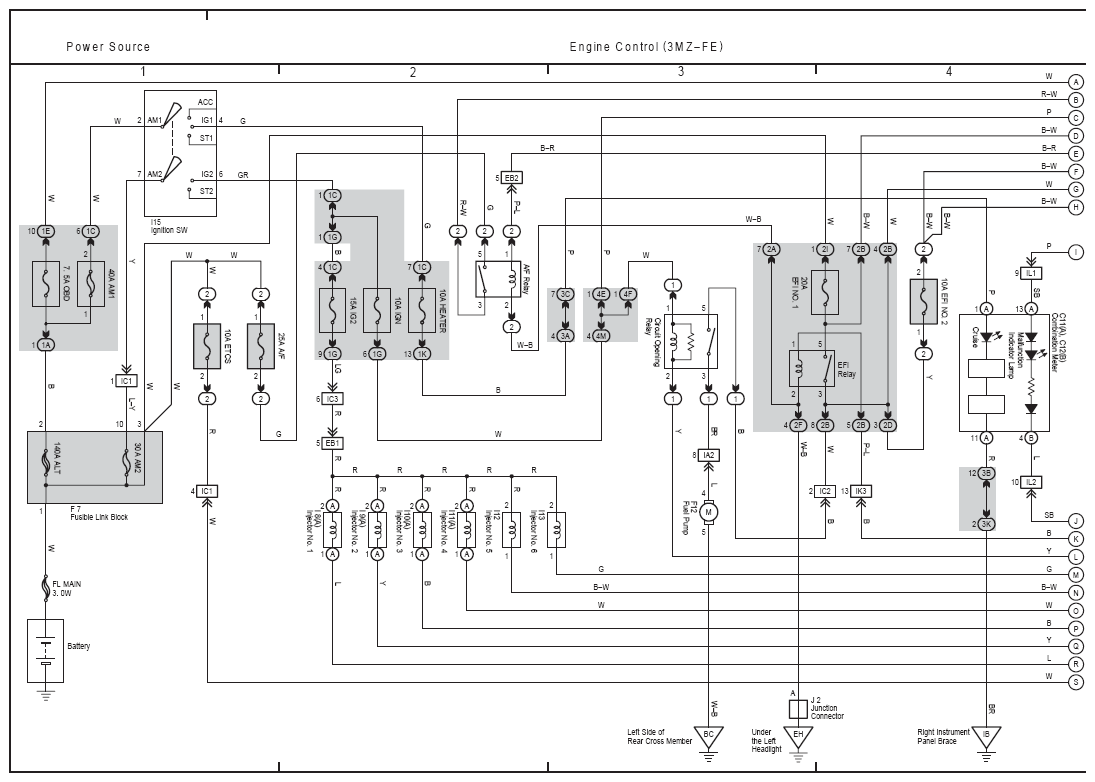

Fig 3: Engine Control Electrical Wiring Diagram (3MZ-FE; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Control Electrical Wiring Diagram (3MZ-FE; 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

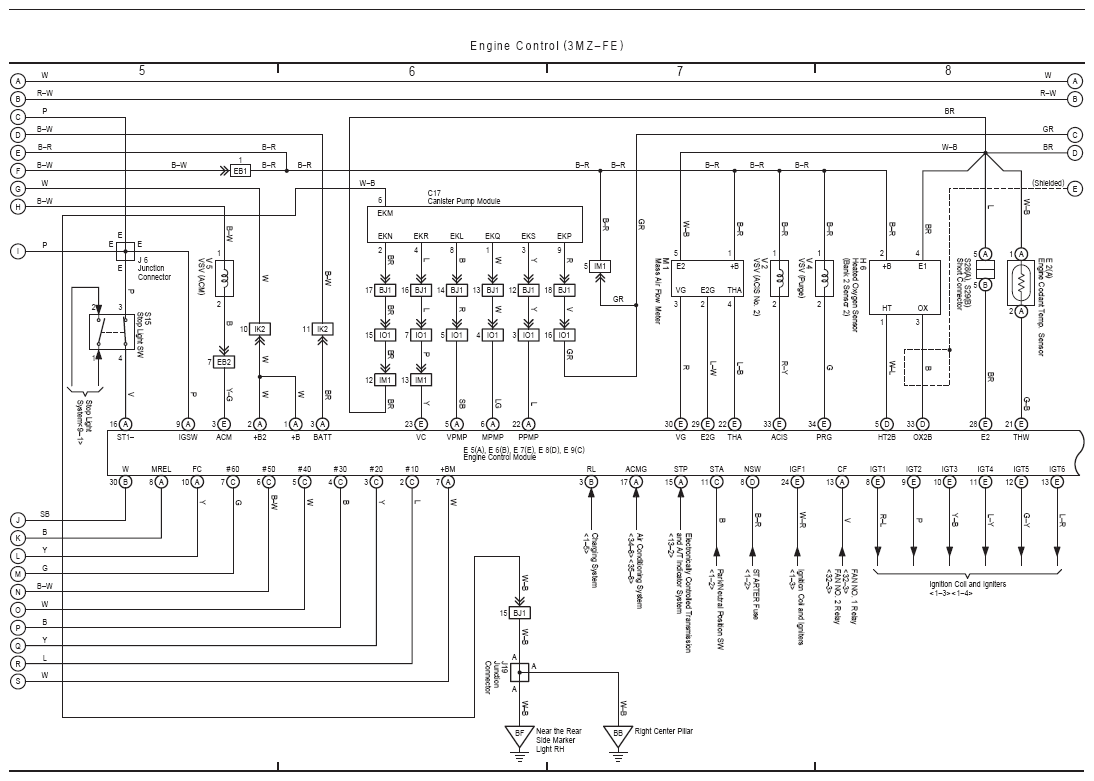

Fig 5: Engine Control Electrical Wiring Diagram (3MZ-FE; 5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
