Cruise Control (2AZ-FE), Engine Control (2AZ-FE)

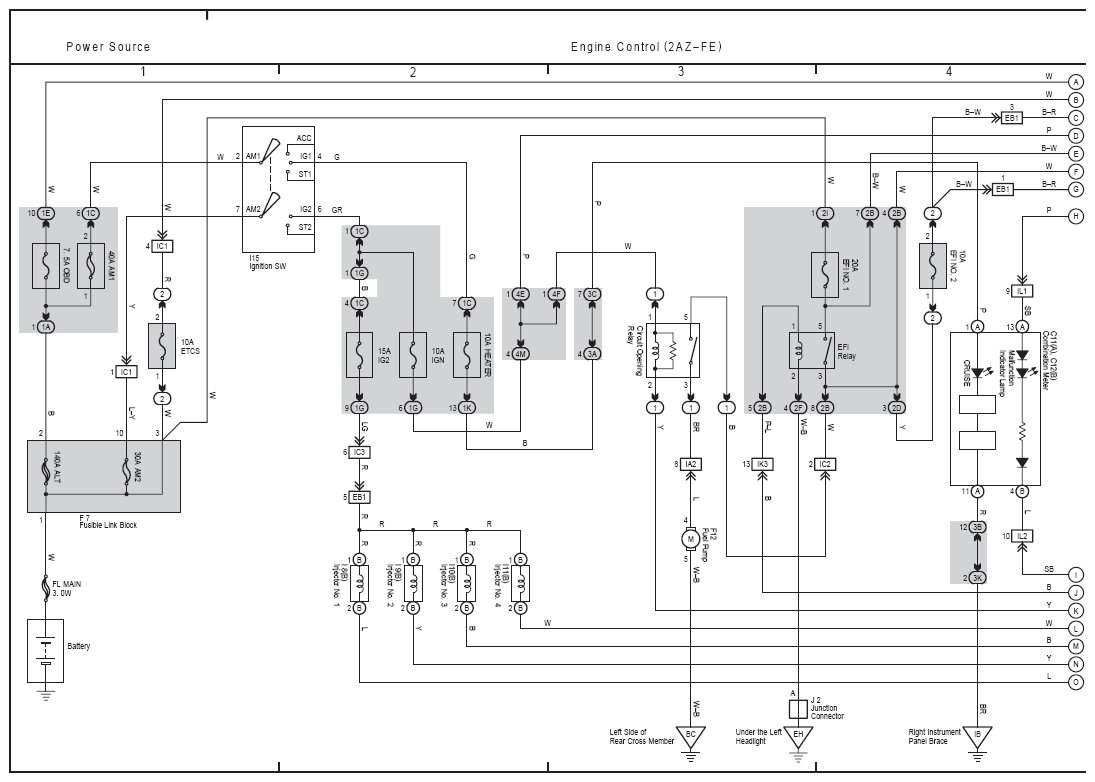

Fig 1: Engine Control Electrical Wiring Diagram (2AZ-FE; 1 Of 4)
G08860793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

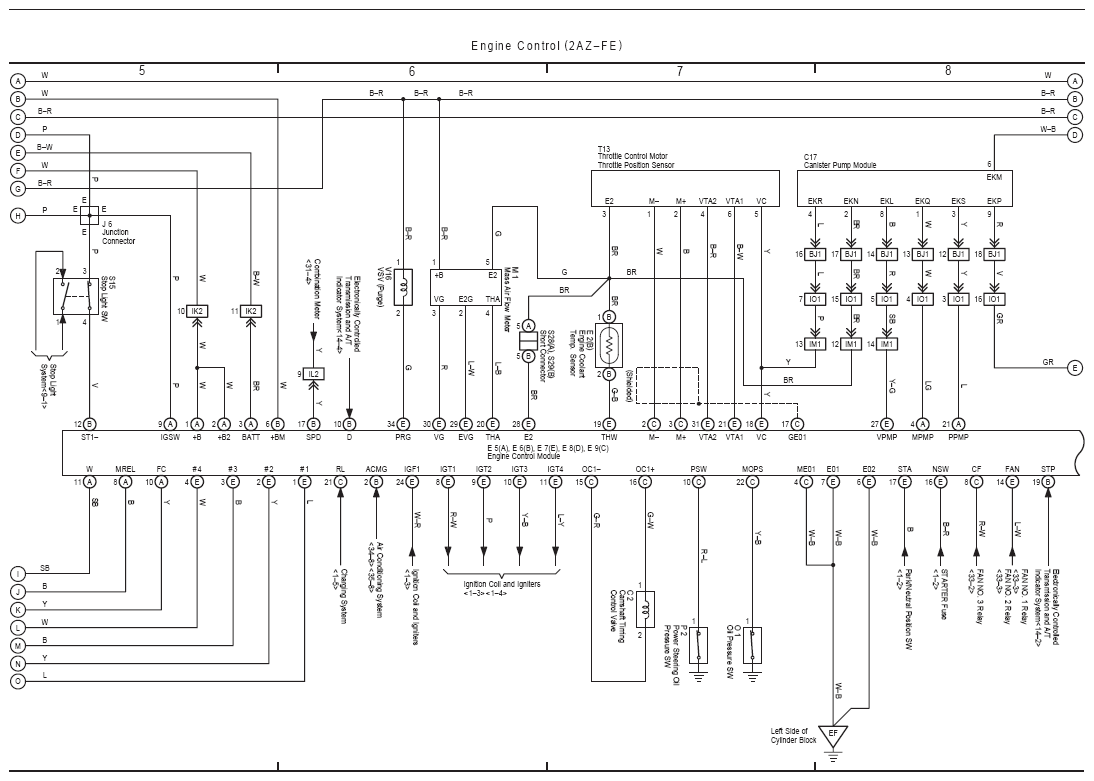

Fig 2: Engine Control Electrical Wiring Diagram (2AZ-FE; 2 Of 4)
G08860794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

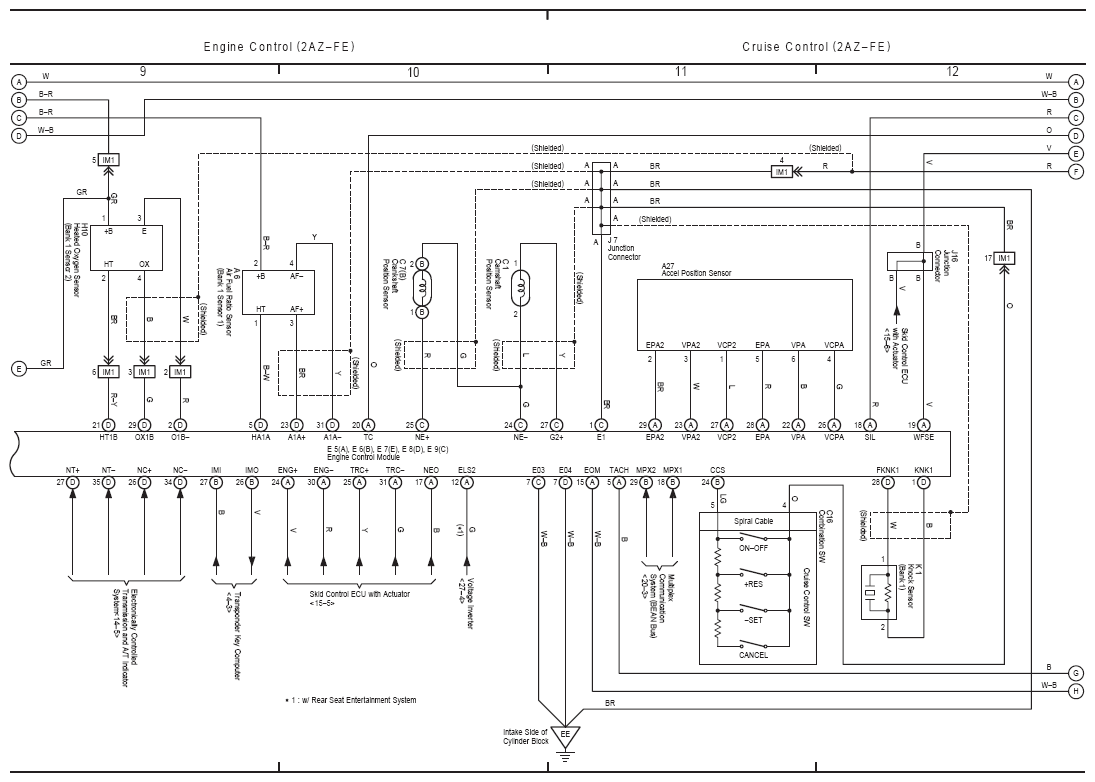

Fig 3: Engine Control Electrical Wiring Diagram (2AZ-FE; 3 Of 4)
G08860795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

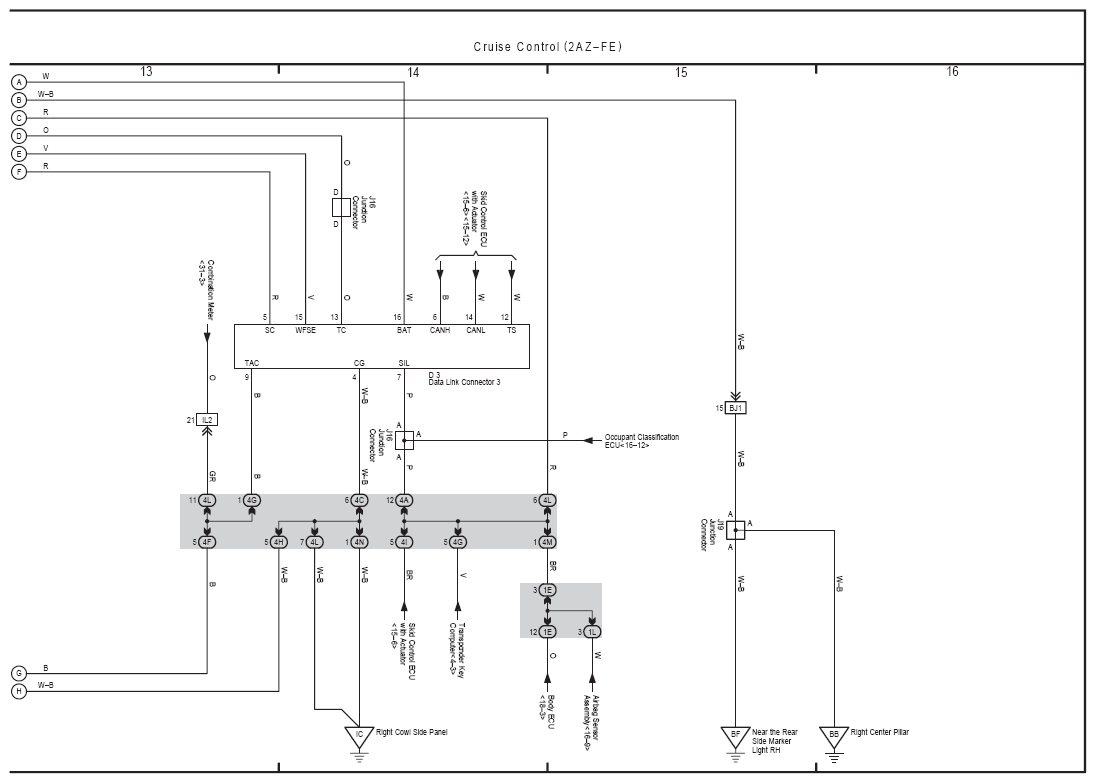

Fig 4: Engine Control Electrical Wiring Diagram (2AZ-FE; 4 Of 4)
G08860796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
