Combination Meter

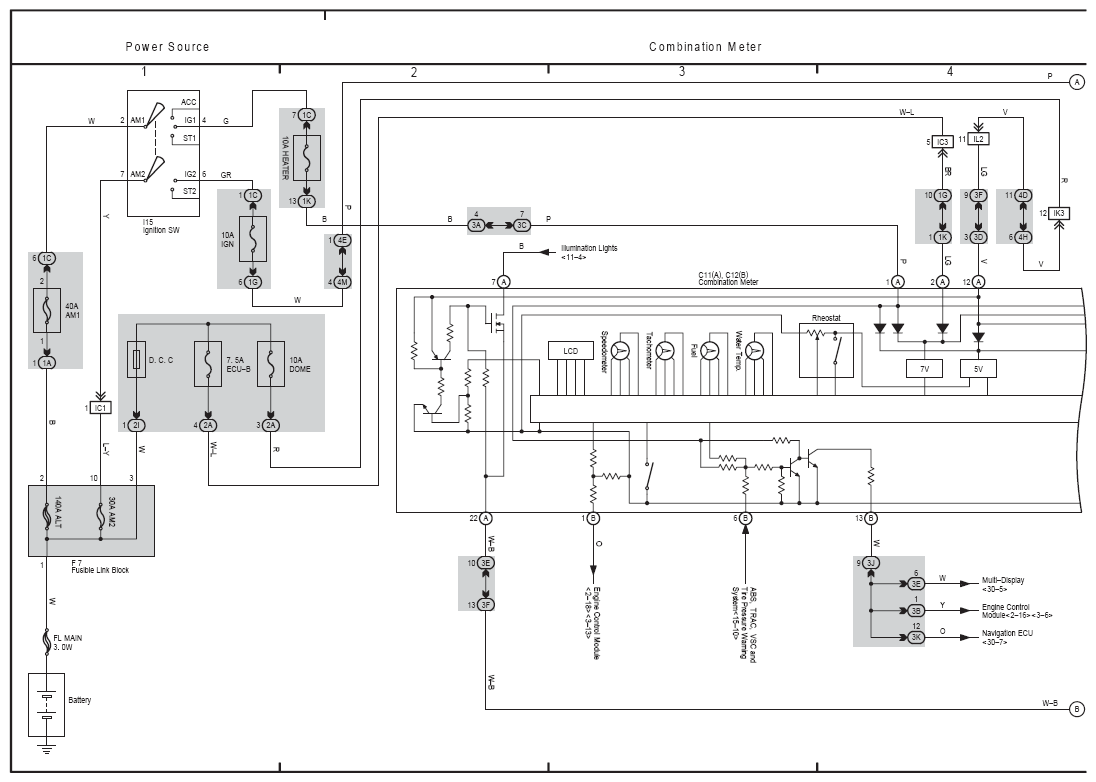

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 3)
G08860838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

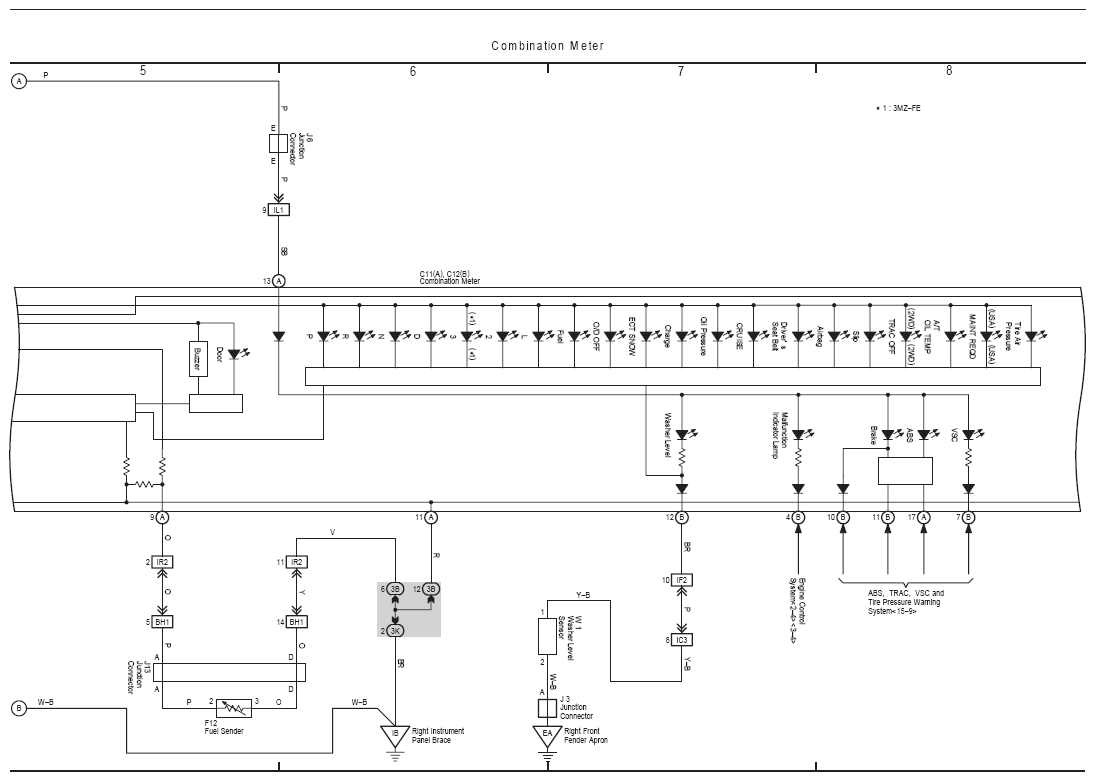

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 3)
G08860839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

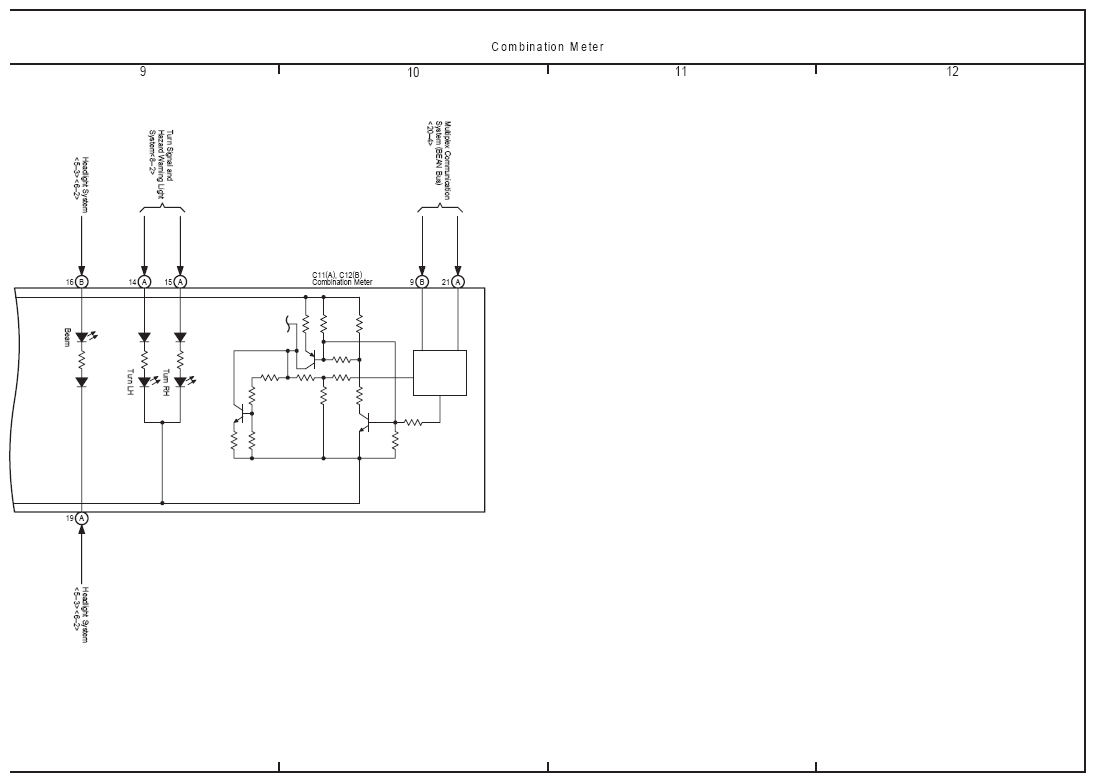

Fig 3: Combination Meter Electrical Wiring Diagram (3 Of 3)
G08860840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
