Cigarette Lighter, Power Outlet (110V), Power Outlet (12V)

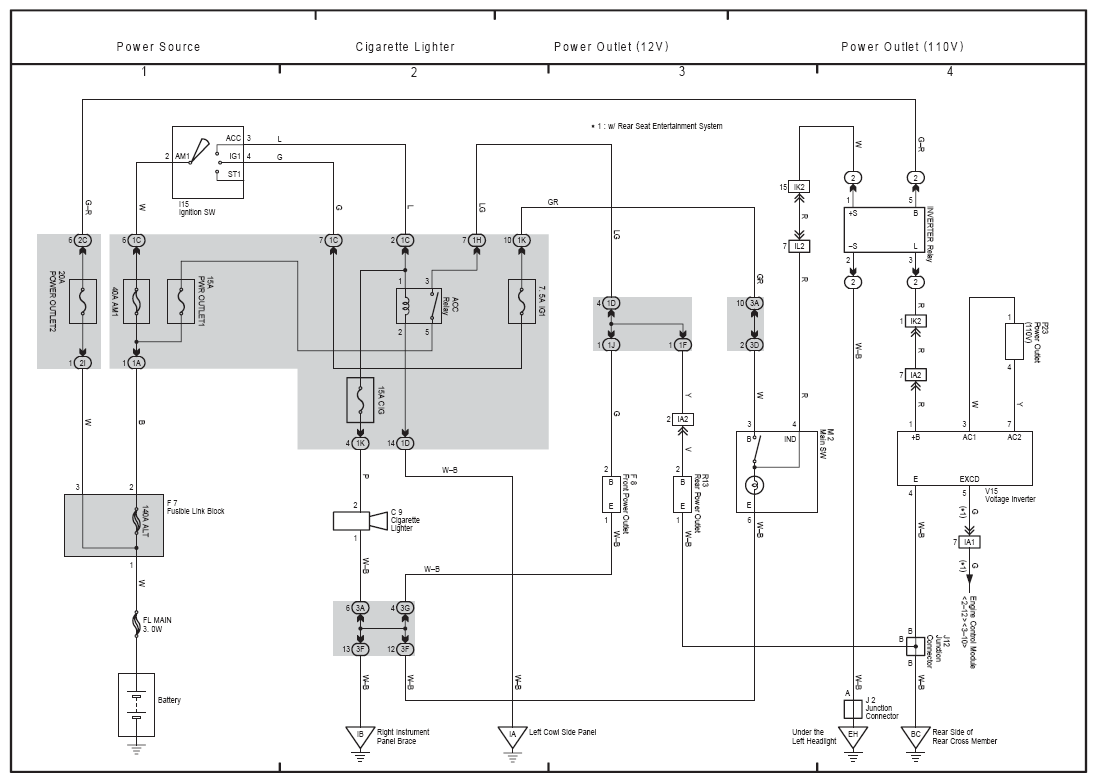

Fig 1: Cigarette Lighter Electrical Wiring Diagram

G08860830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
