Charging, Ignition, Power Source, Starting

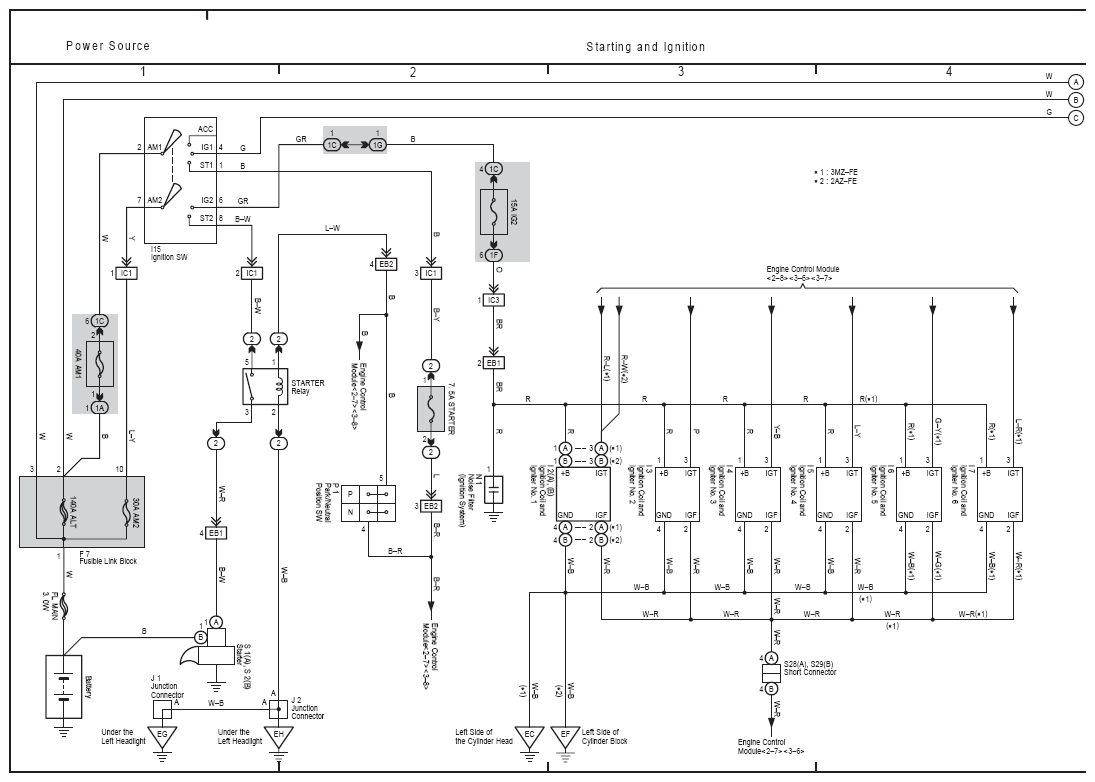

Fig 1: Starting And Ignition Electrical Wiring Diagram
G08860786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

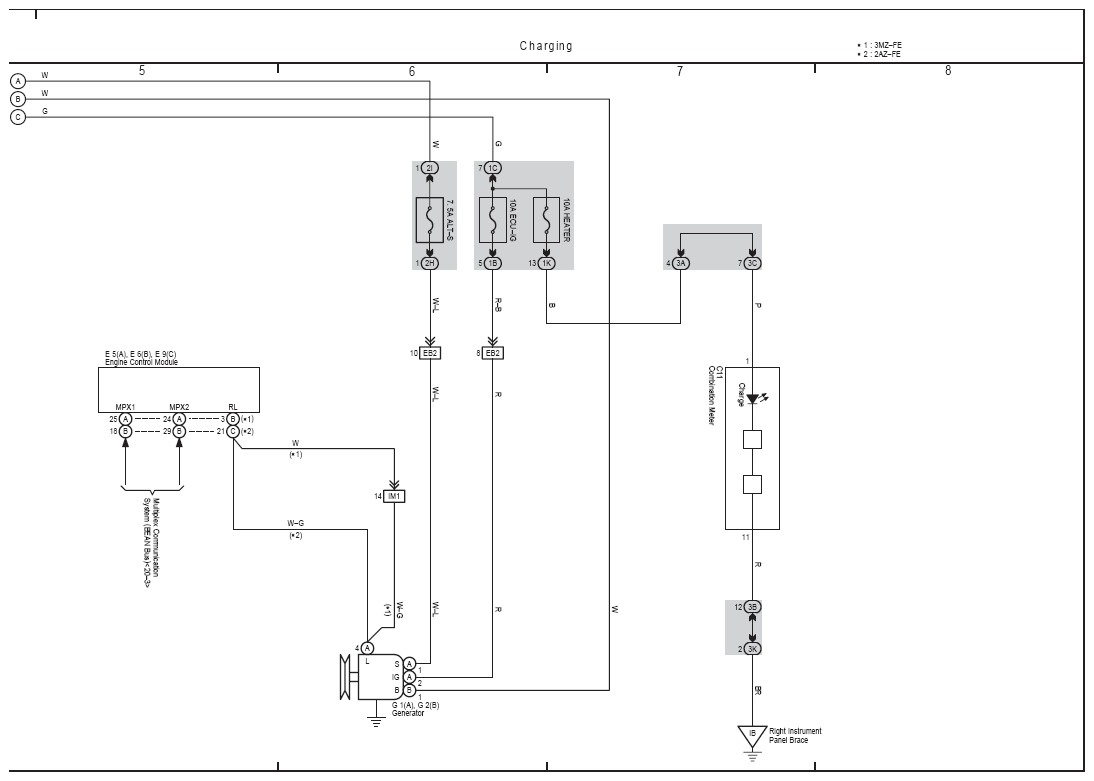

Fig 2: Charging System Electrical Wiring Diagram
G08860787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
