Automatic Light Control, Front Fog Light

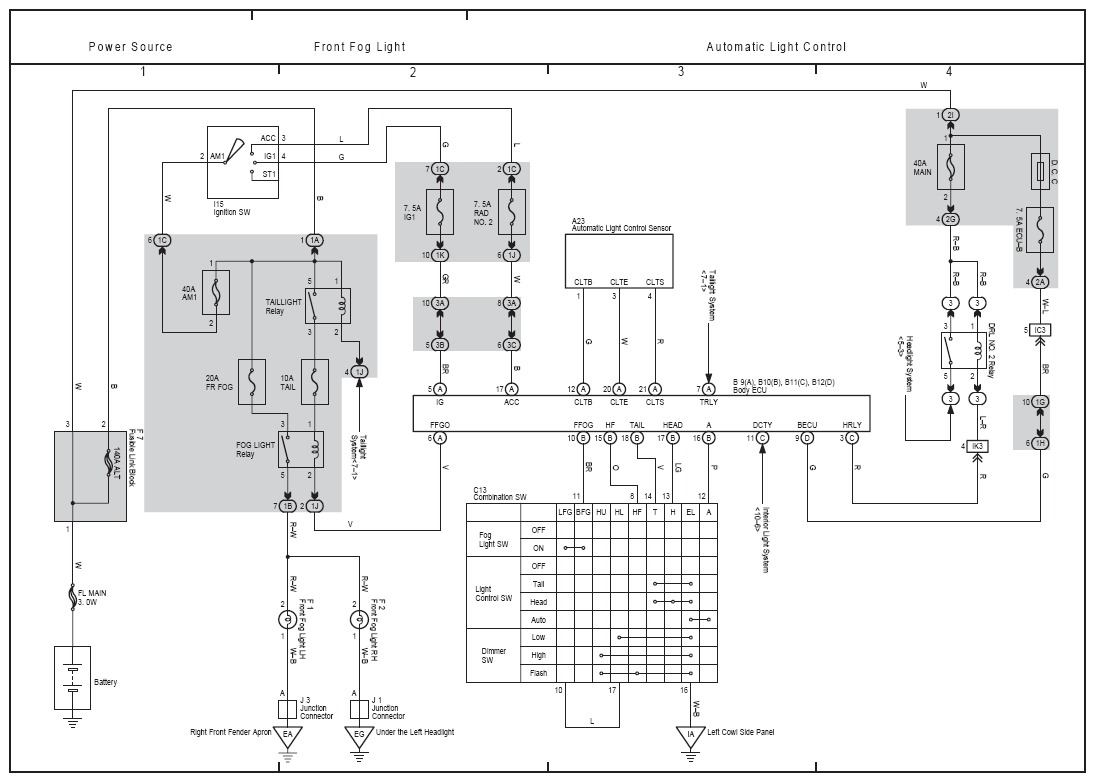

Fig 1: Front Fog Light Electrical Wiring Diagram

G08860807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
