Audio System (8 Speaker)

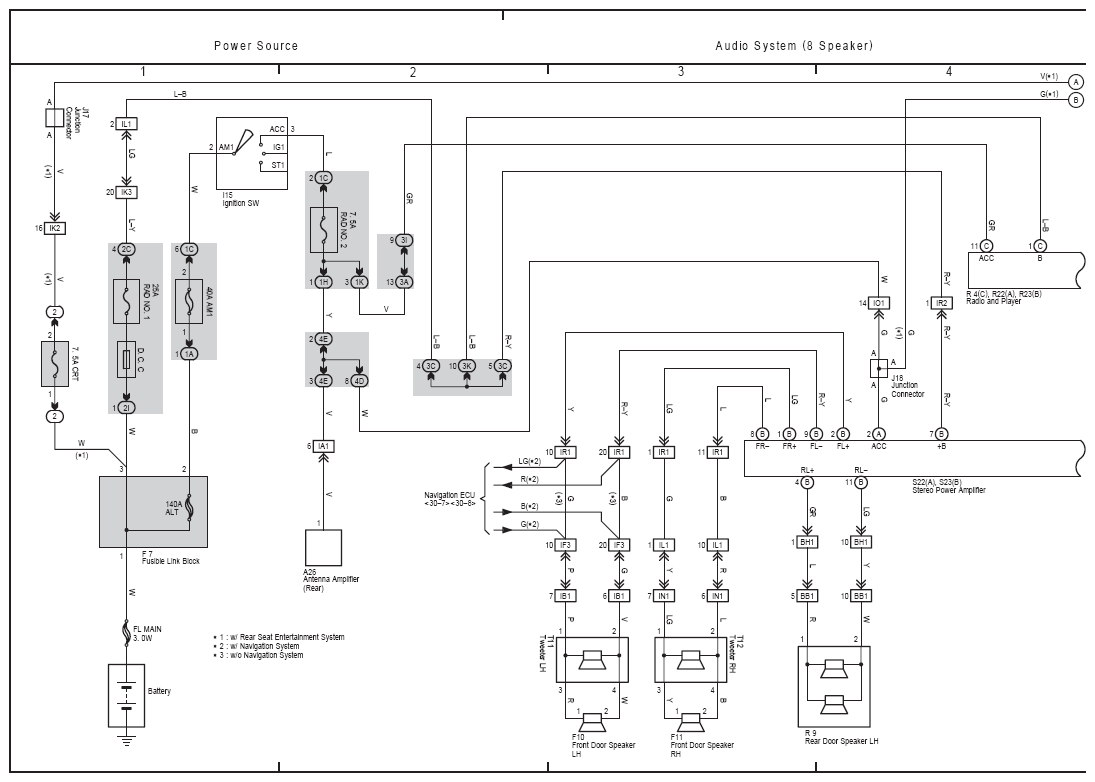

Fig 1: Audio System (With 8 Speaker) Electrical Wiring Diagram (1 Of 4)
G08860832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

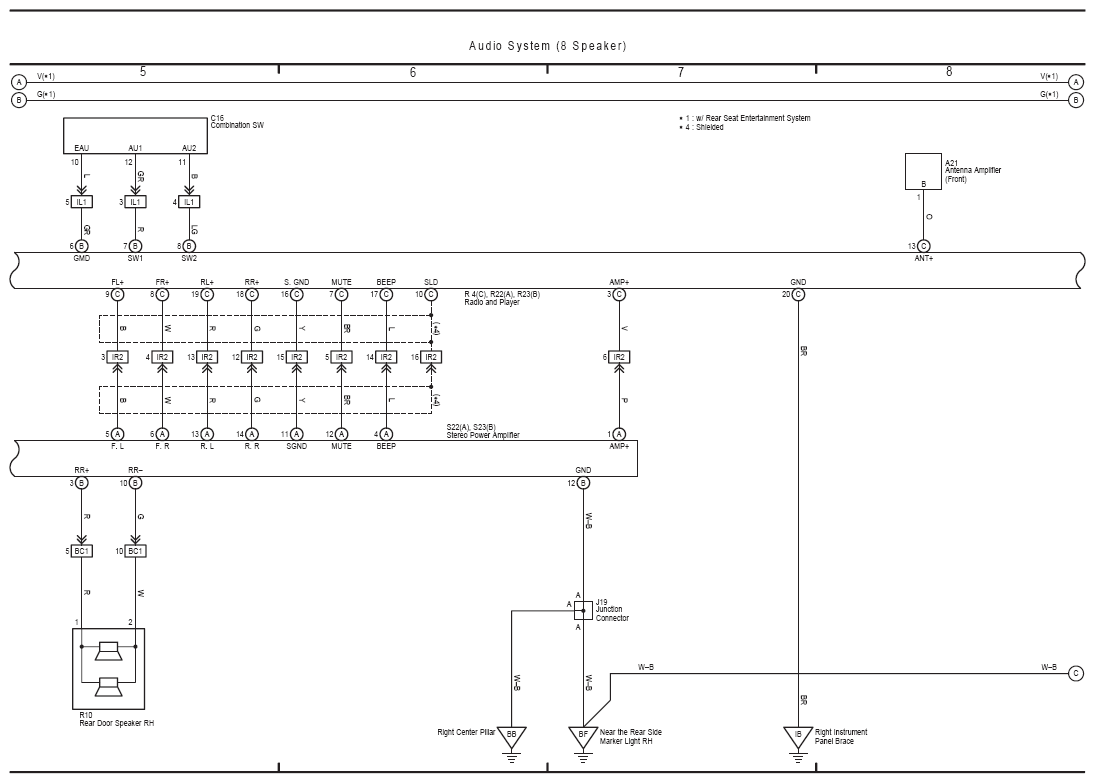

Fig 2: Audio System (With 8 Speaker) Electrical Wiring Diagram (2 Of 4)
G08860833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

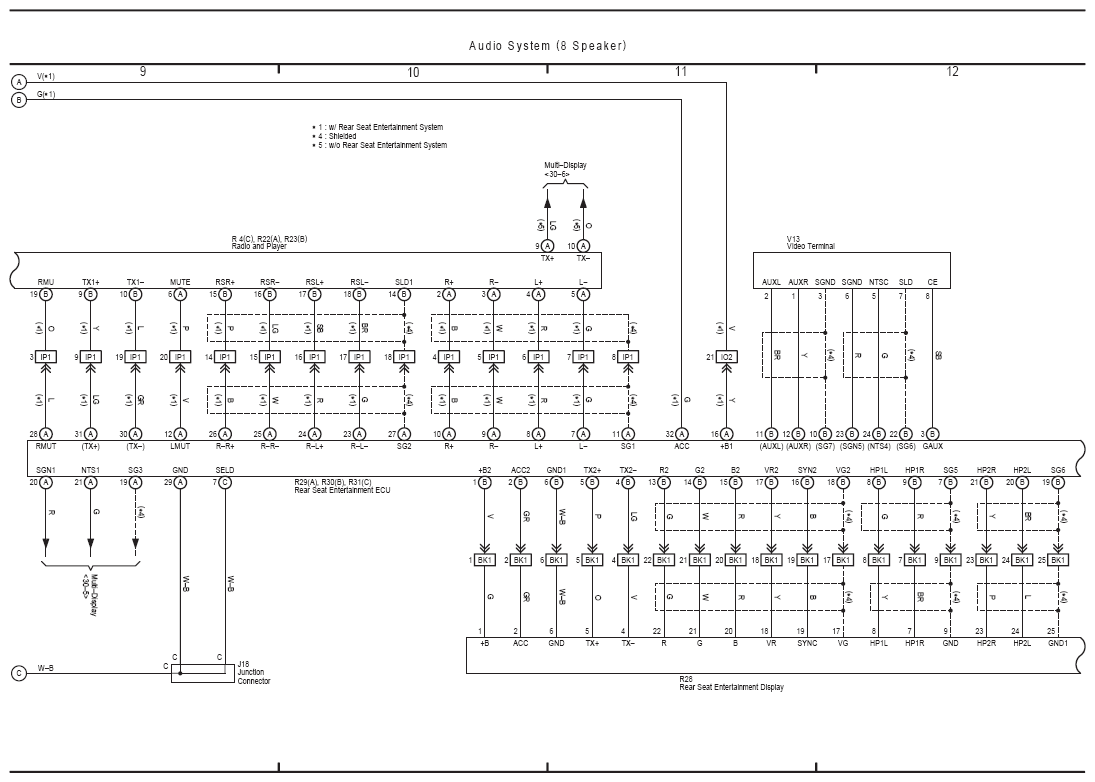

Fig 3: Audio System (With 8 Speaker) Electrical Wiring Diagram (3 Of 4)
G08860834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

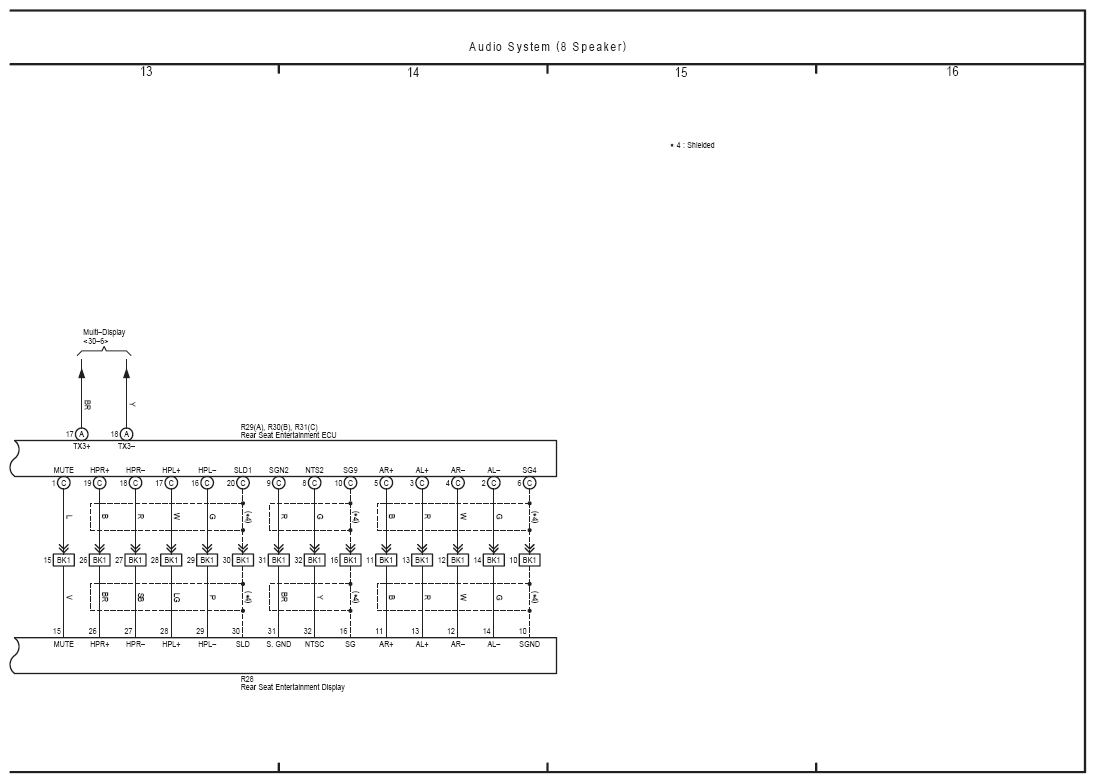

Fig 4: Audio System (With 8 Speaker) Electrical Wiring Diagram (4 Of 4)
G08860835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
