Air Conditioning (Manual A/C)

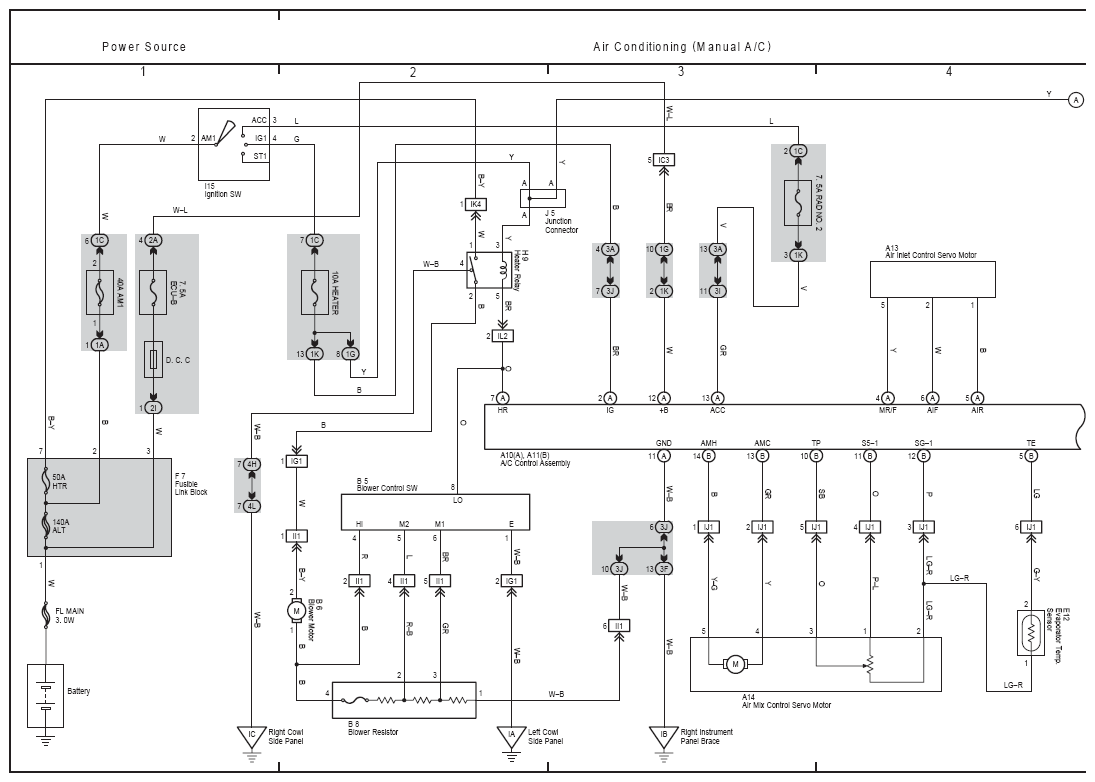

Fig 1: Air Conditioning (Manual A/C) Electrical Wiring Diagram (1 Of 2)
G08860845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

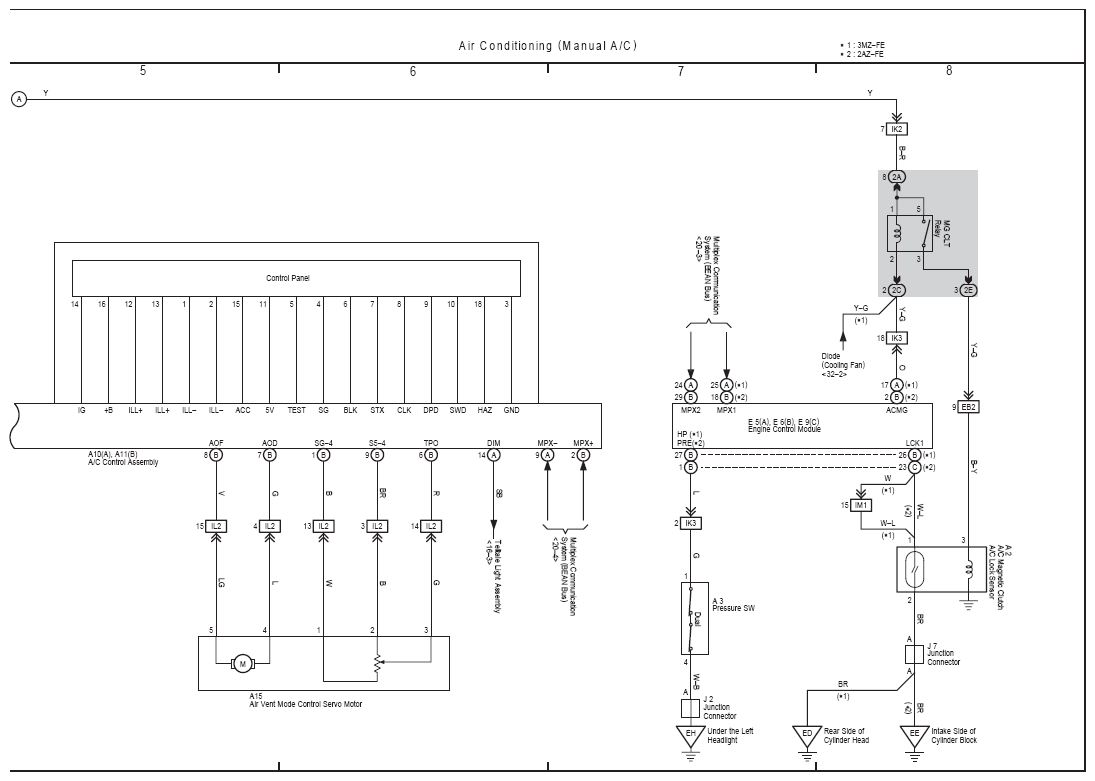

Fig 2: Air Conditioning (Manual A/C) Electrical Wiring Diagram (2 Of 2)
G08860846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
